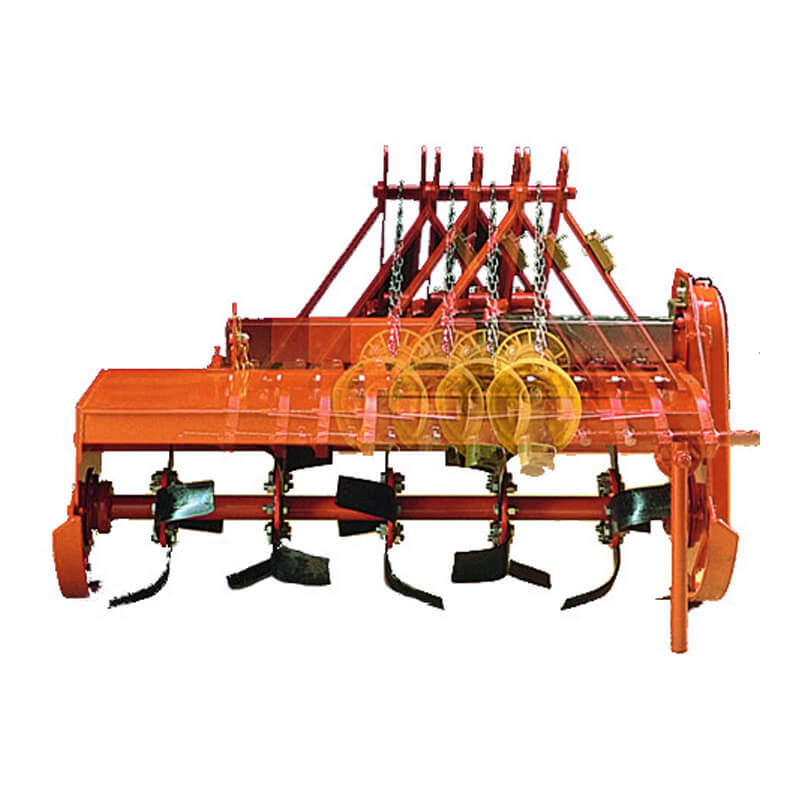

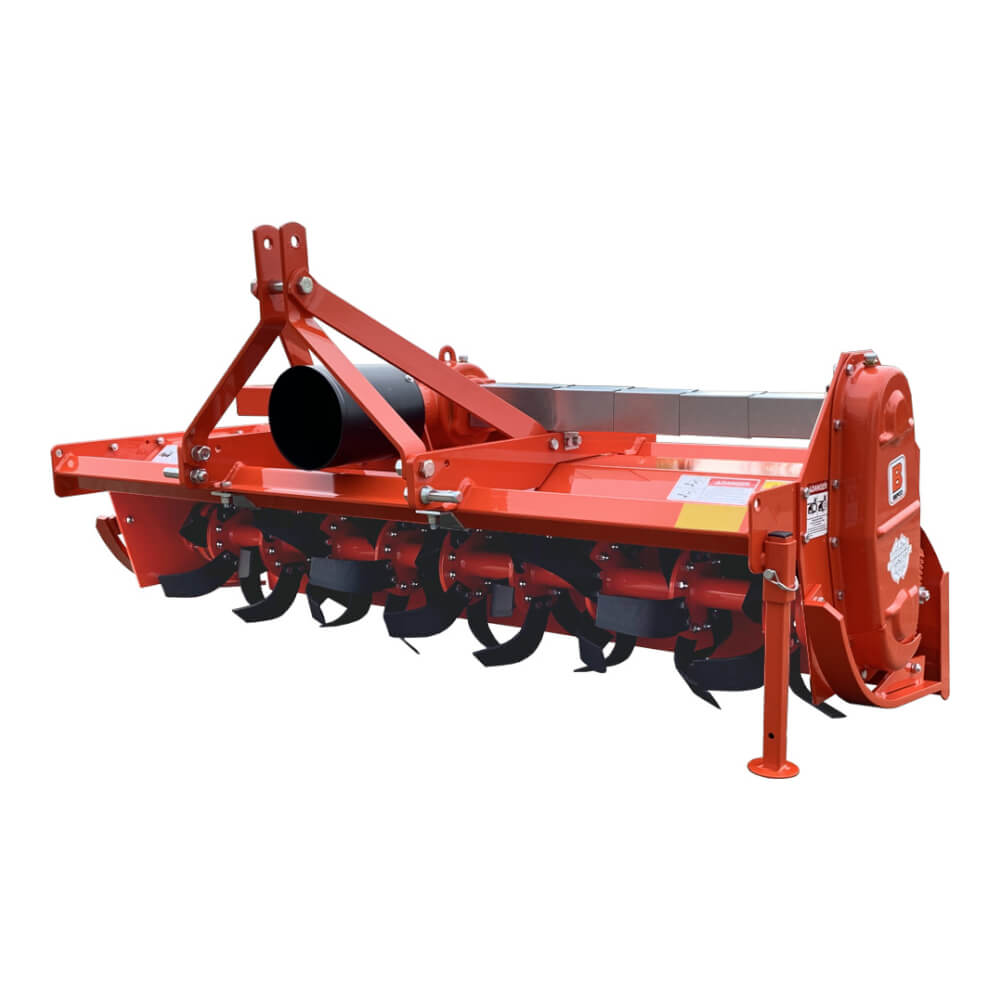

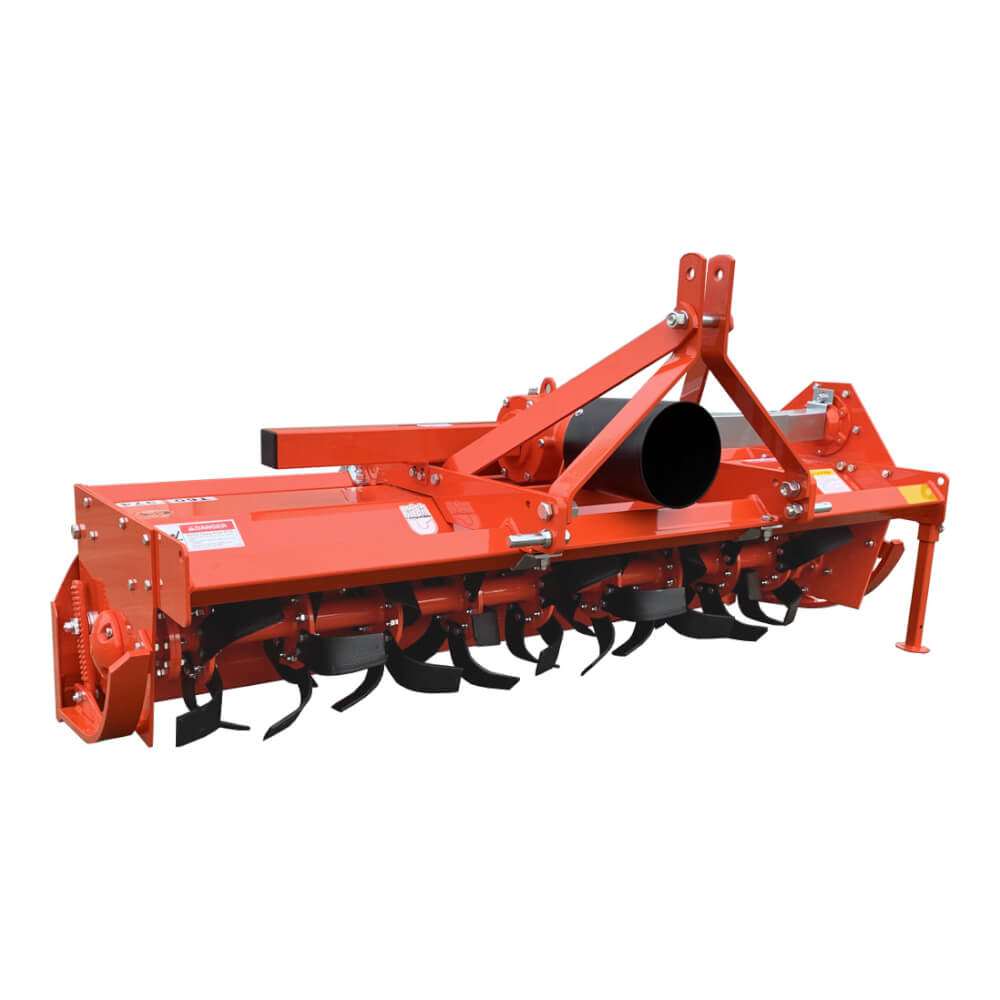

BEFCO T60 Rotary Tiller

BEFCO Till-Rite T60 RotoTiller

Tackle tough soil and thick vegetation head-on with a rotary tiller engineered for durability and precision. Designed to handle 35-60 horsepower tractors, this rotary tiller features a heavy-duty, in-house manufactured gearbox built from high-strength steel, ensuring gear and bearing reliability through every season. The smooth, manual side-shift system offers the flexibility to offset the tiller for efficient tilling closer to tractor tires or obstacles, maximizing your working area without compromise. Built tough to work alongside the grit and determination you bring to your land, it delivers adjustable tilling depths up to 8 ¾ inches, controlled effortlessly with durable side skids. The flanged rotor shaft allows for quick blade service and replacement, while six blades per flange deliver greater stability and finer soil pulverization for a consistently smooth finish. Power transmission is optimized through a robust ASA 100 chain drive enclosed in an oil bath, reducing downtime and maintenance needs. The rotary tiller’s forward or reverse rotor rotation options help you manage rocks efficiently—burying them or bringing them to the surface as your task requires. Compatible with ASAE Cat. 1 quick hitches, it seamlessly integrates with your existing tractor setup. This rotary tiller is the dependable gear that stands strong with you through every season and every acre. When you invest in this tool, you’re investing in America’s enduring spirit of hard work and craftsmanship. Order now and put American-made quality to work on your land.

Specifications

• Suitable for 35-60 HP tractors (26-45 KW)
• PTO speed: 540 rpm, Cat. 1 driveline

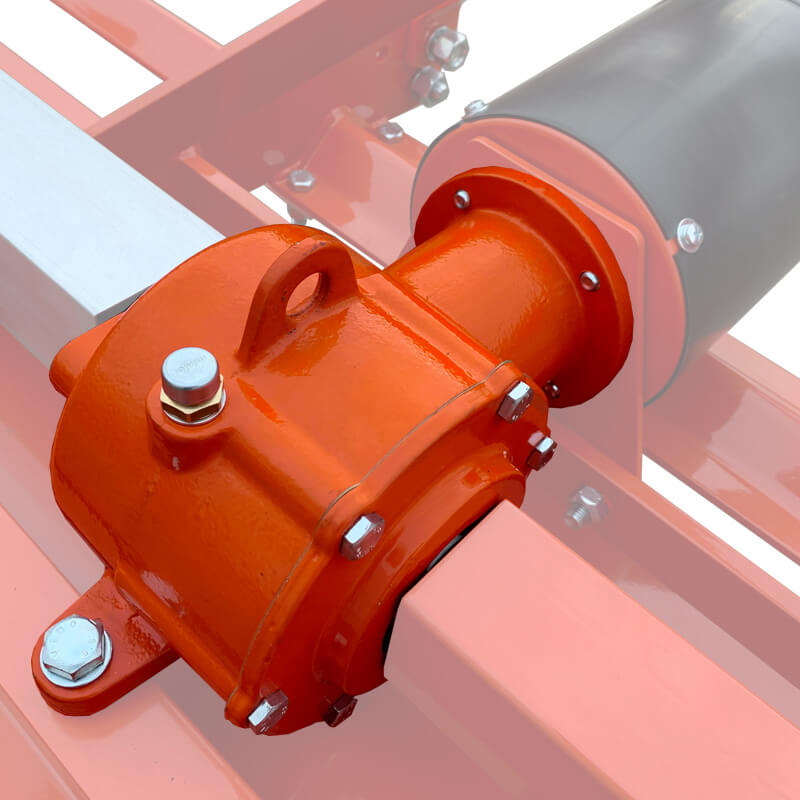

• Highly engineered and rugged gearbox manufactured by BEFCO
• Smooth manual side-shift system built-in for offset tilling

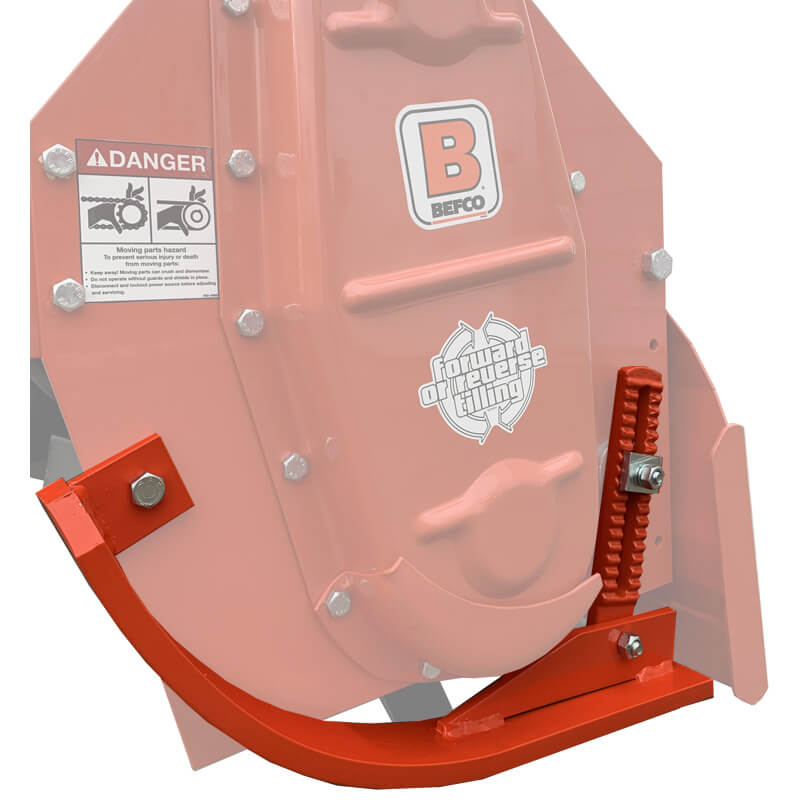

• Adjustable side skids for working depth control (0" to 8 3/4" max working depth)
• Heavy duty shielded PTO shaft with slip clutch safety (1 3/8” ASAE cat. 6)

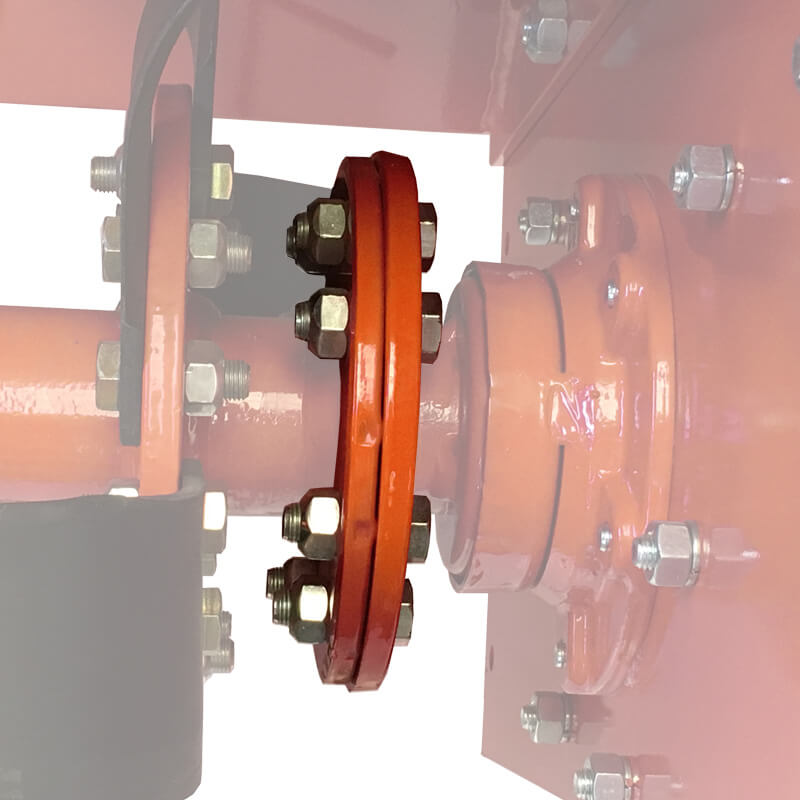

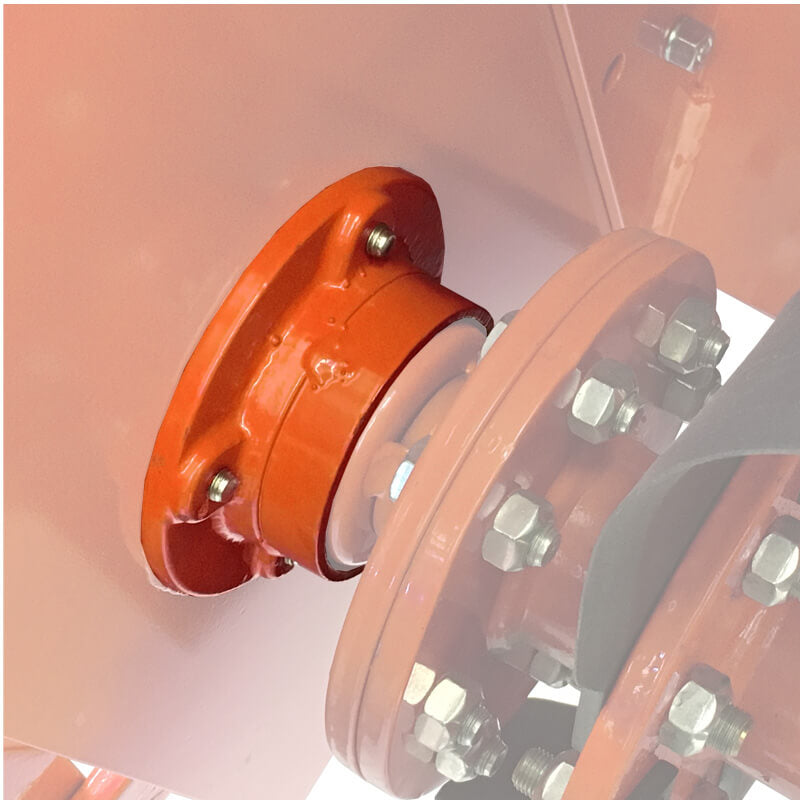

• Flanged rotor shaft for easy removal and service of rotor

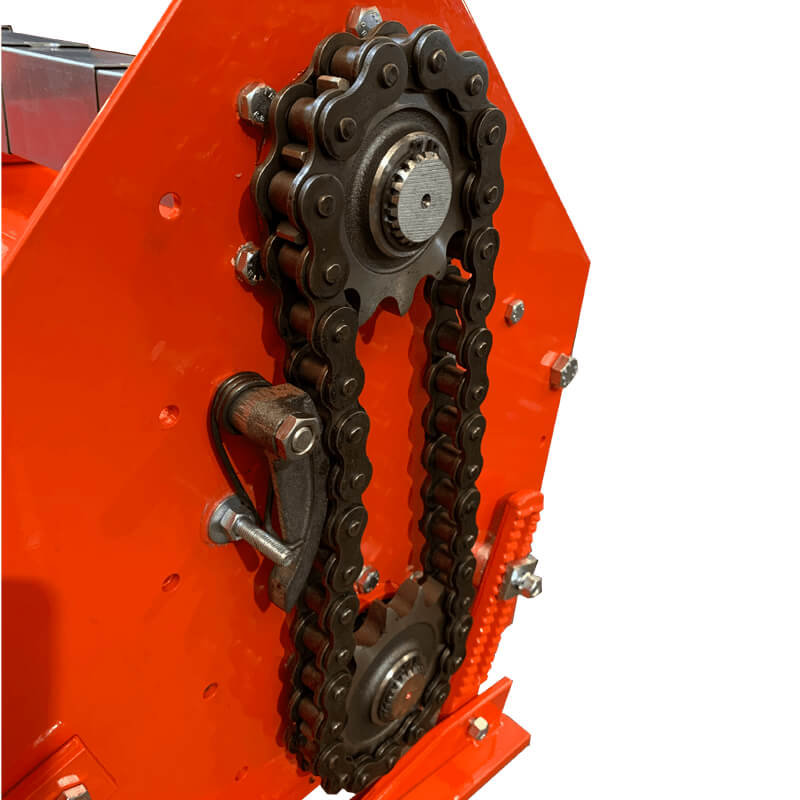

• Lateral ASA #100 chain drive transmission in oil bath

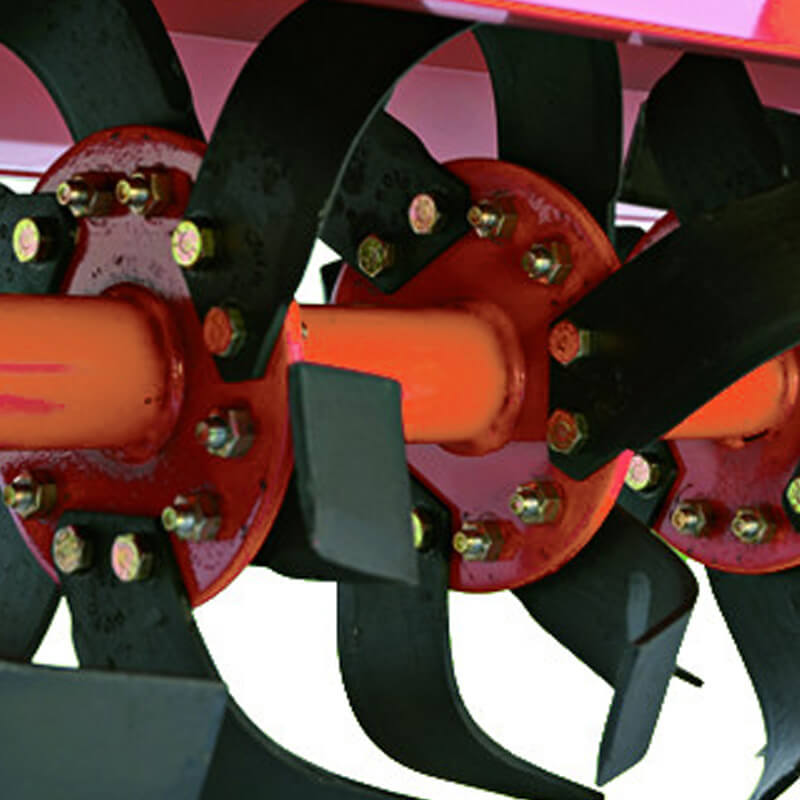

• Standard six blades per flange for greater stability and finer soil pulverization
• Outward turned blades to keep rotor supports clean and maximize working width
• Heavy duty full size tiller blades
• 3 point linkage, category 1

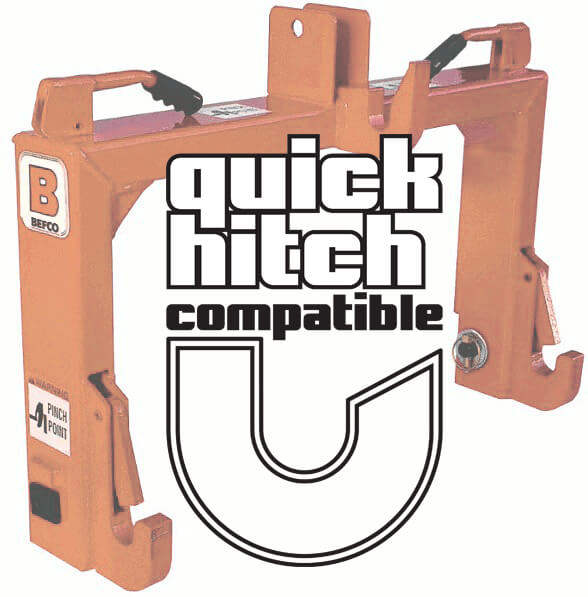

• Compatible with ASAE Cat. 1 quick hitches

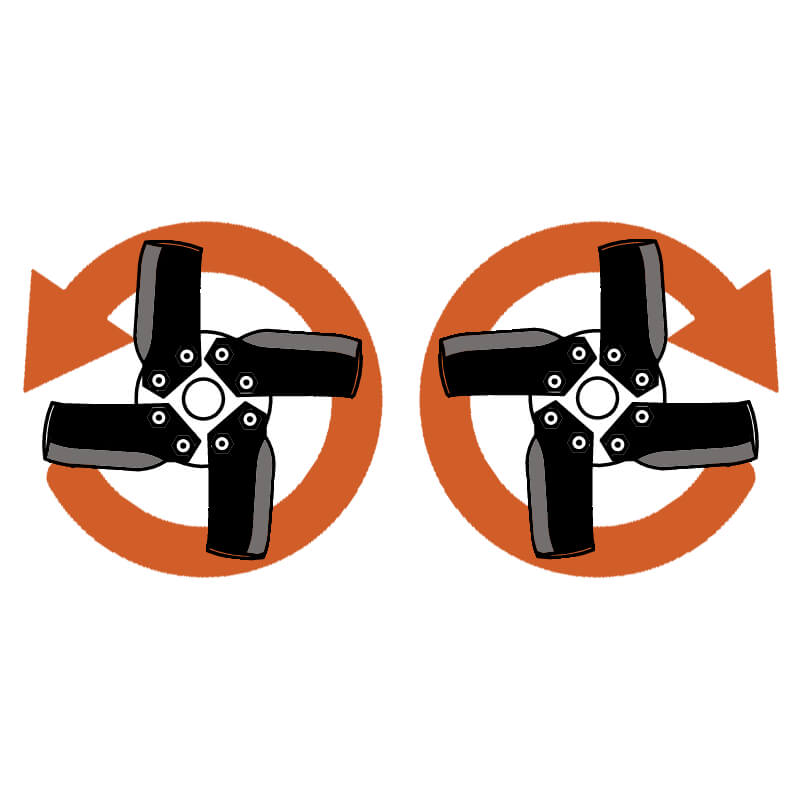

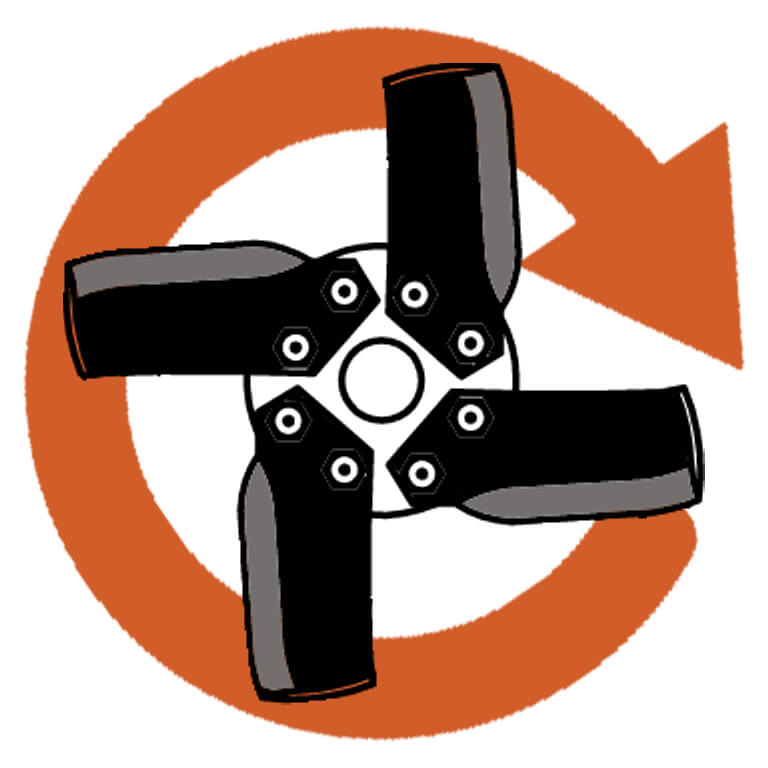

• Forward or reverse rotating rotor available (forward tends to bury rocks, reverse tends to bring rocks to surface)
• Weight: approximately 740 lbs (model T60-366) to 798 lbs (model T60-374)
• Working width: 66" to 74" depending on model
• Overall width: 72" to 81" depending on model
• Side-shift travel: 22" (T60-366) or 26" (T60-374)
• Number of flanges: 8 (T60-366) or 9 (T60-374)
• Number of blades: 48 (T60-366) or 54 (T60-374)
• Number of chain sprockets: 12-14
• Rotor RPM: 221
