Reliable hay raking and windrow formation — optimized for small tractors and tight-turning fields.

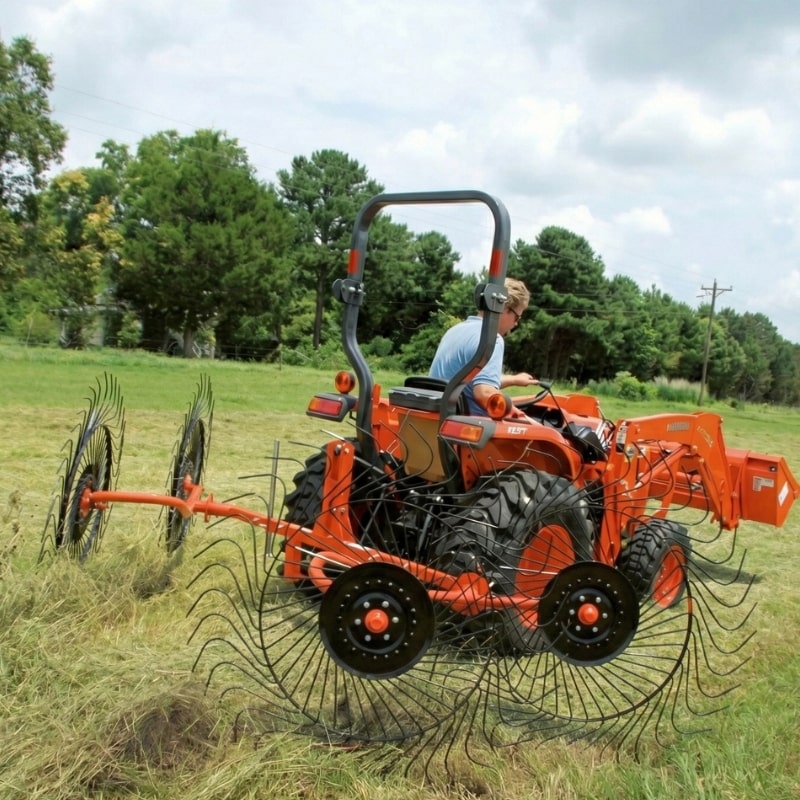

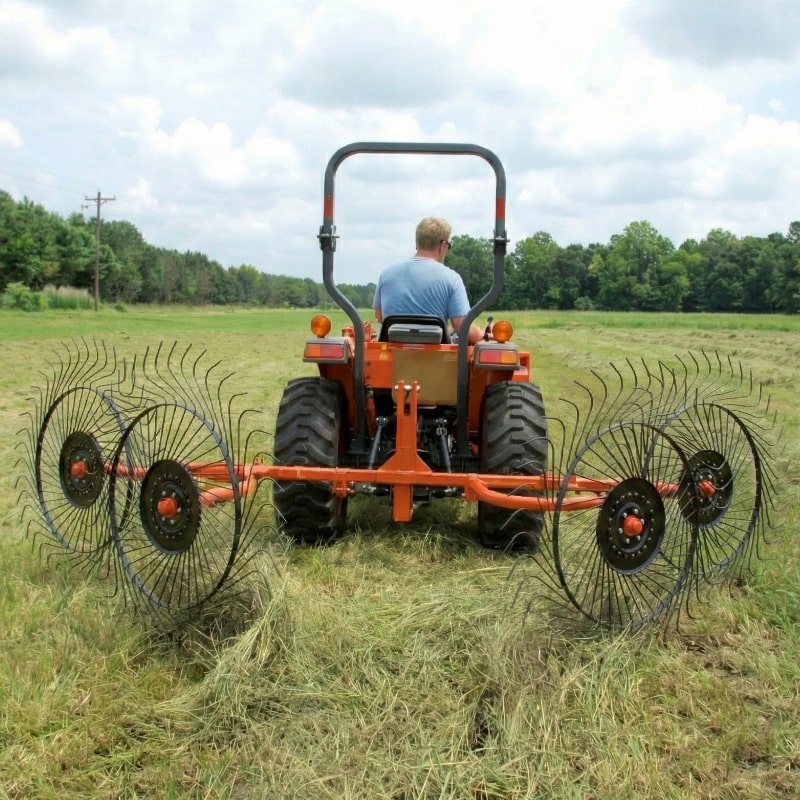

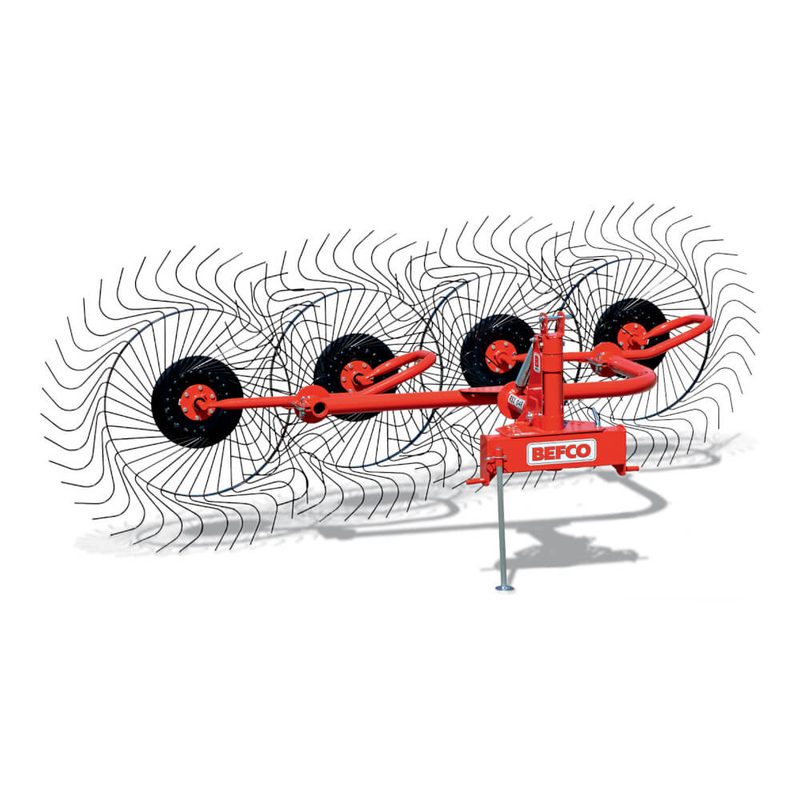

The RS2 “V”-type wheel rake delivers efficient, gentle hay and straw raking — forming well-structured windrows that speed up baling or collection. Designed for tractors with 16-30 HP and Cat. 1 linkage, it’s an ideal match for small to mid-sized farm operations seeking reliable forage handling without heavy equipment.
Whether you’re baling hay, collecting straw, or preparing forage for drying, this rake ensures consistent flow and gentle handling even over uneven terrain — reducing leaf loss and minimizing crop damage. Its “V”-configuration helps channel cut crop inward for concentrated windrows, simplifying pickup and maximizing efficiency.
Durable construction with molded-steel hubs and greaseable tapered roller bearings ensures long service life and low maintenance — a wise long-term investment for hay producers looking for dependable performance season after season.

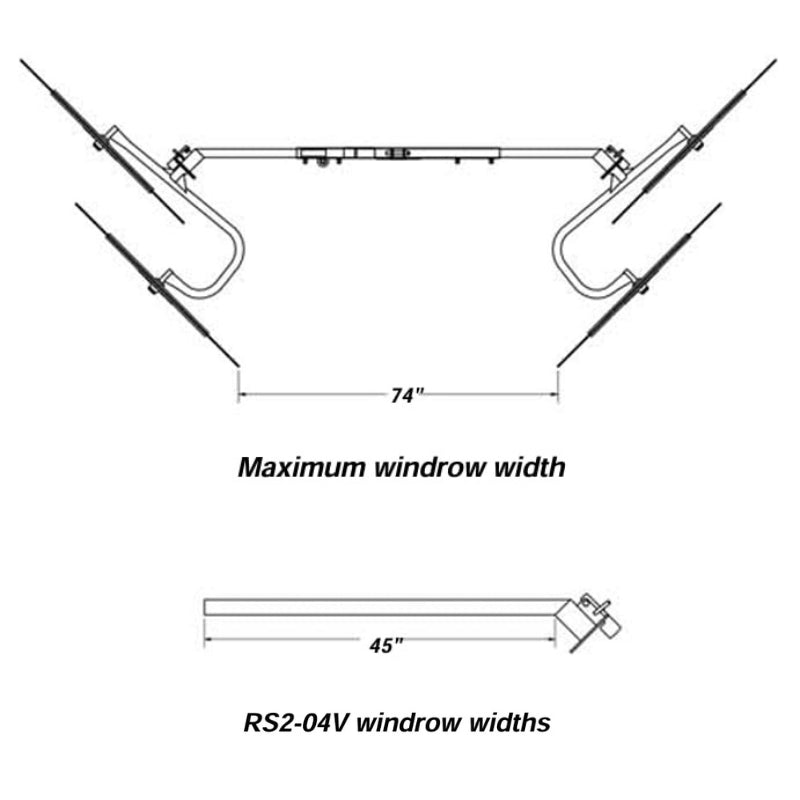

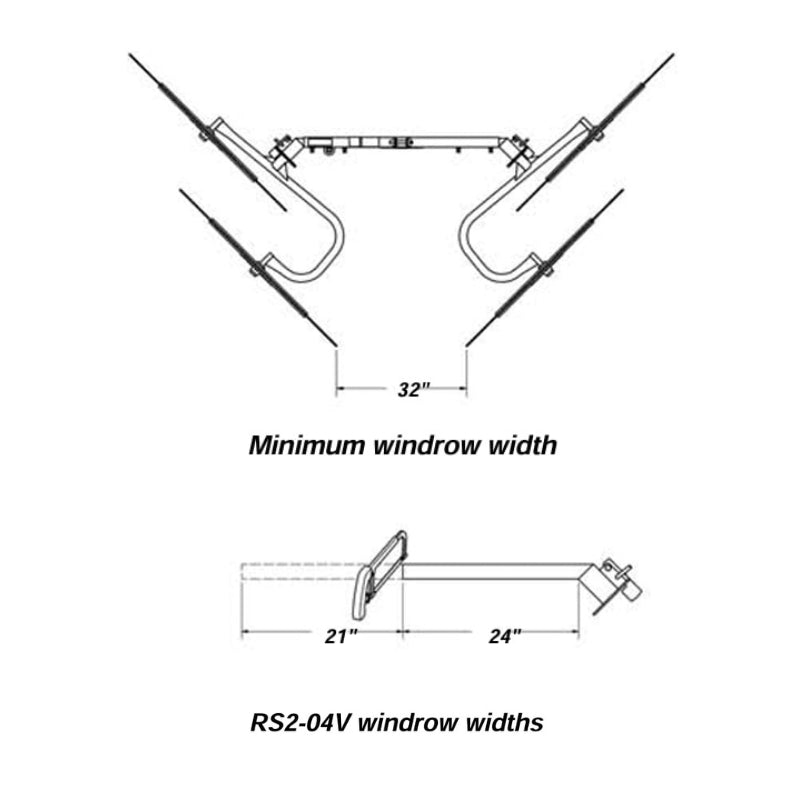

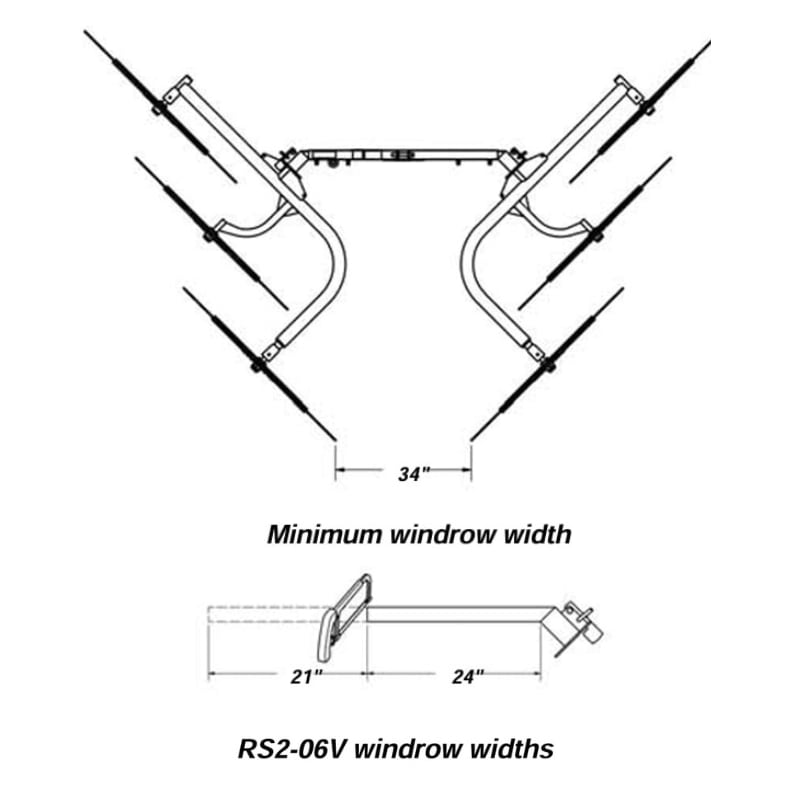

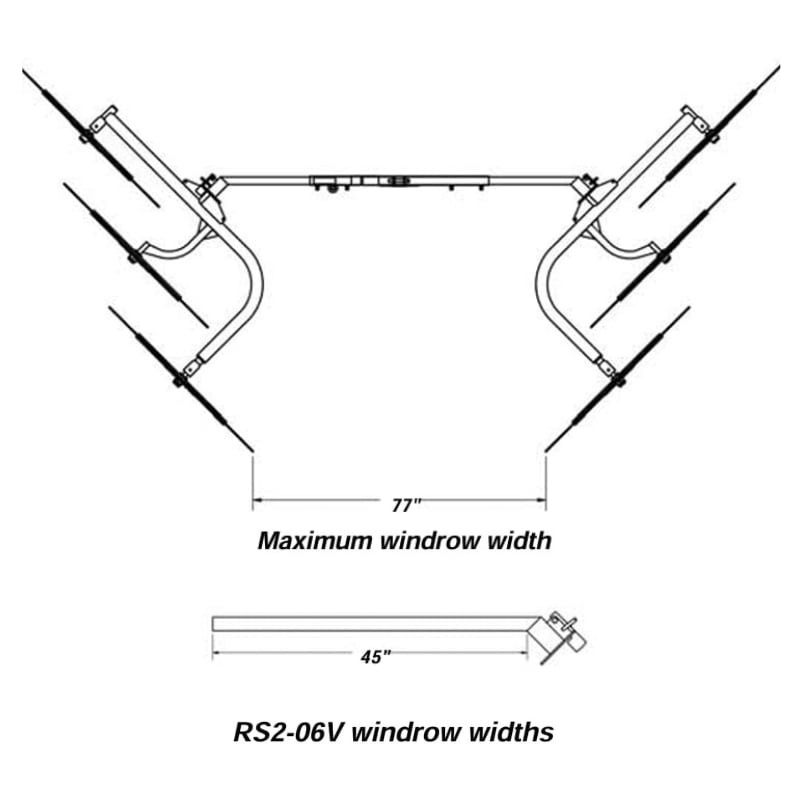

“V”-Type Wheel Arrangement
Wheels are arranged to funnel crop toward the center, forming tight, manageable windrows that make baler pickup smoother and more efficient.
Compatible with 16–30 HP Tractors (Cat. 1)
Compact power requirement makes this rake accessible to owners of smaller tractors — ideal for small farms, ranches, or mixed-use properties.
Molded Steel Hubs & Greasable Tapered Bearings
Heavy-duty hubs with greaseable bearings extend service life and ensure reliable performance even under heavy use and rough terrain.
Bent Elbows for Better Crop Flow
Up-ward bent wheel elbows improve hay flow through the rake, reducing clogging and ensuring even windrow formation under demanding conditions.
Gentle Ground-Following Design
Floating wheels adapt to uneven terrain, lifting hay gently to avoid soil contamination — preserving forage quality and ensuring cleaner windrows.
Quick Hitch Compatible
Ready for ASAE Cat. 1 quick hitch, making hookup and removal quicker and easier for busy farms or frequent attachment changes.
Recommended Tractor Power
16–30 HP
Hitch Category
Cat. 1 (3-point linkage)
Wheel Diameter
56"
Teeth per Wheel
40
Tooth Diameter
9/32"
Working Width (RS2-04V / RS2-06V)
11'6" (RS2-04V) / 15'10" (RS2-06V)
Transport Width
10'2" (RS2-04V) / 12'7" (RS2-06V)
Transport Height
7'6" (RS2-04V) / 10' (RS2-06V)
Working Speed
Up to 14 mph
Weight
≈ 353 lbs (RS2-04V) / ≈ 547 lbs (RS2-06V)
