Reach up to 22.73 feet with a hydraulically extending boom designed for overhead material placement, construction, and installation work.
Some materials need to go farther or higher than your skid steer's standard loader arms can reach. Whether you're positioning construction materials, working on pole installations, or handling overhead placement jobs, the Prime Attachments Telescopic Boom gives you the additional reach needed to tackle those tasks with your existing machine.

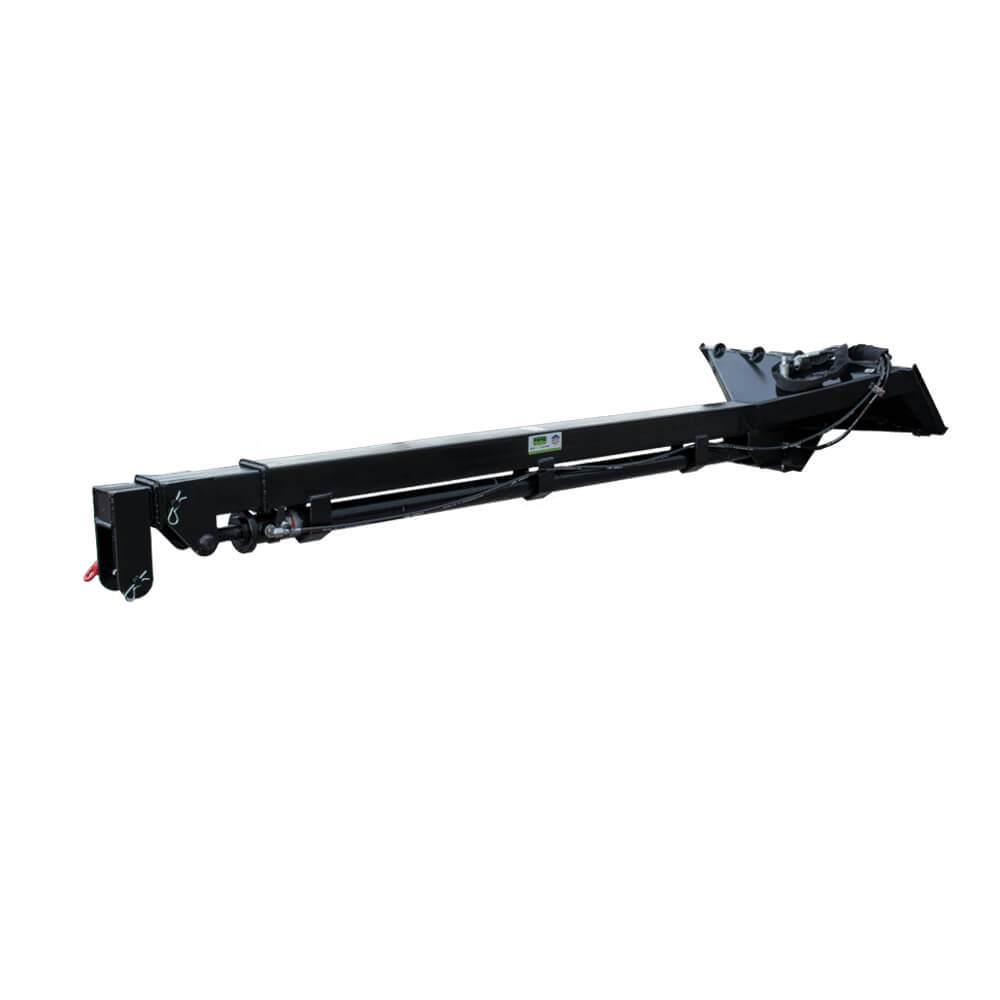

This hydraulic telescopic boom attachment features a 72" stroke cylinder and an additional manual extension adjustment. It measures approximately 10'6" when retracted and extends to 22.73 feet, allowing operators to position loads farther from the machine without relying on a conventional bucket or pallet fork attachment.
Built for contractors, pole builders, and steel erection work, the attachment weighs 485 lbs and has a manufacturer-rated load capacity of 350 lbs when fully extended horizontally. Its Skid Steer Quick Attach (SSQA) mounting system connects to compatible loaders, providing a specialized solution for jobs where controlled reach and material placement matter.
22.73 FT FULLY EXTENDED LENGTH
The telescoping design provides extended horizontal reach for positioning materials during construction, installation, and overhead placement work.
72" HYDRAULIC EXTENSION CYLINDER
A hydraulic cylinder extends and retracts the boom, allowing operators to adjust reach using compatible skid steer auxiliary hydraulics.
ADDITIONAL MANUAL ADJUSTMENT
Manual extension adjustment works alongside the hydraulic cylinder to provide the boom's full range of reach.
350 LB FULL EXTENSION RATING
Manufacturer-rated for a 350 lb load when fully extended horizontally. Actual allowable lifting capacity depends on the skid steer and boom position.
SKID STEER QUICK ATTACH MOUNT
The SSQA mounting system allows the boom to connect to compatible skid steers for specialized material handling applications.
BUILT FOR JOBSITE MATERIAL PLACEMENT

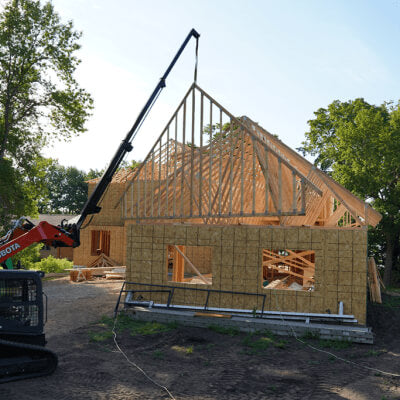

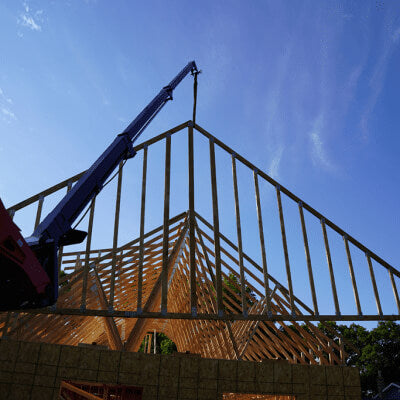

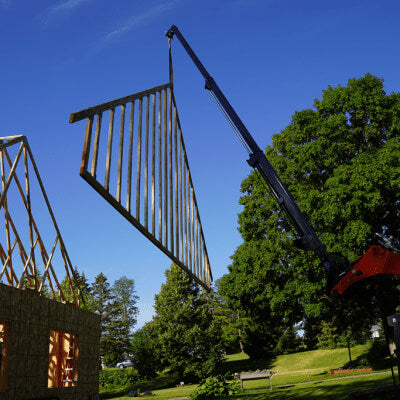

Designed for applications involving elevated material placement, including construction, pole installation, and steel erection work.
| Specification | Details |
|---|---|
| Manufacturer | Prime Attachments |
| Model / SKU | TEL |
| Attachment Type | Hydraulic Telescopic Boom for Skid Steers |
| Mounting System | Skid Steer Quick Attach (SSQA) |
| Retracted Length | 129" (Approximately 10'6") |
| Fully Extended Length | 272.76" (22.73 ft) |
| Overall Width | 45" |
| Overall Height | 22" |
| Attachment Weight | 485 lbs |
| Hydraulic Cylinder Stroke | 72" |
| Additional Extension | Manual Adjustment |
| Full Extension Load Rating | 350 lbs, Horizontal Position |
| Hydraulic Operation | Requires Compatible Auxiliary Hydraulics |
| Primary Applications | Elevated Material Placement, Construction, Pole Installation, and Steel Erection |
| Country of Manufacture | USA |
| Manufacturer Warranty | 2 Years |
Attachment Weight vs. Lifting Capacity: The telescopic boom itself weighs 485 lbs. The 350 lb figure is the manufacturer's rated load capacity with the boom fully extended horizontally. These are two different measurements.
Maximum Reach: The manufacturer lists a fully extended boom length of 272.76", or 22.73 feet. The actual height and reach achievable during operation depend on the skid steer's lift arm position and machine geometry.
Machine Stability and Load Ratings: Extending a suspended load farther from the machine changes the load center and can significantly reduce available lifting capacity. The skid steer's rated operating capacity does not automatically apply at the boom's extended positions. Follow the manufacturer's operating instructions and applicable load ratings for the complete machine and attachment combination.
Hydraulic Compatibility: The hydraulic extension cylinder requires compatible skid steer auxiliary hydraulics. Confirm mounting compatibility, hydraulic connections, and applicable operating requirements before purchase.
