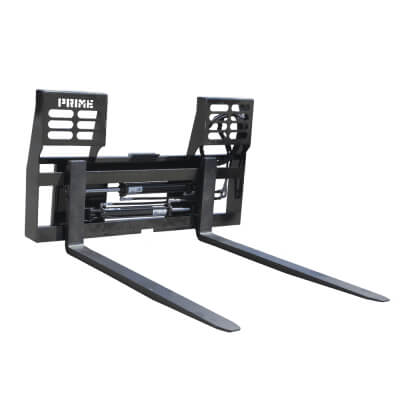

Hydraulically adjustable forks, a 5,500 lb fork rating, and a walk-through carriage built for handling pallets and irregular loads.
Not every pallet or load is the same width, and constantly climbing out of your skid steer to reposition forks gets old fast. The Prime Attachments Hydraulic Sliding Pallet Forks let operators adjust fork spacing hydraulically, making it easier to switch between different pallets, materials, and load sizes without repeatedly stopping to move the forks by hand.
The attachment features a professionally milled 1-1/4" x 3" smooth slider bar and a reinforced 1/2" bottom slider bar for dependable fork adjustment. The walk-through carriage design provides an open center section, making it easier for operators to enter and exit the machine when the attachment is lowered.
Built with 5,500 lb rated forks, these hydraulic pallet forks are suited for material handling on construction sites, farms, equipment yards, and commercial properties. Choose from 4' or 5' carriage widths and fork lengths, including mixed configurations, to match your machine and the loads you handle. Made in the USA and backed by Prime Attachments' 2-year manufacturer warranty.
HYDRAULICALLY ADJUSTABLE FORKS
Adjust fork spacing using compatible skid steer hydraulic controls, making it easier to switch between pallets and irregularly sized loads without manually sliding the forks.
5,500 LB RATED FORKS
Heavy duty forks with a manufacturer stated 5,500 lb rating provide the strength needed for demanding material handling applications, subject to the skid steer's lifting capacity.
1-1/4" X 3" SMOOTH SLIDER BAR
A professionally milled upper slider bar provides a smooth guide surface for the hydraulic fork adjustment system.
REINFORCED 1/2" BOTTOM SLIDER BAR
A heavy bottom slider bar provides additional support for the fork carriage during adjustment and material handling operations.

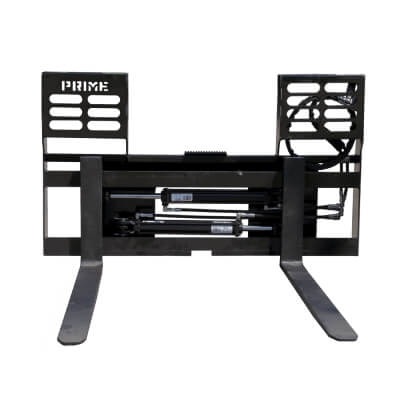

WALK-THROUGH CARRIAGE DESIGN
The open center carriage design provides a convenient walk-through area when entering or exiting a compatible skid steer with the attachment safely lowered.
FOUR CARRIAGE AND FORK COMBINATIONS
Select 4' or 5' carriage widths with 4' or 5' fork options, including mixed sizes, to suit different equipment and load handling requirements.
| Specification | Details |
|---|---|
| Manufacturer | Prime Attachments |
| Attachment Type | Hydraulic Sliding Pallet Forks |
| Mounting System | Skid Steer Quick Attach (SSQA) |
| Fork Adjustment | Hydraulic |
| Fork Rating | 5,500 lbs |
| Upper Slider Bar | 1-1/4" x 3" Professionally Milled Steel |
| Slider Design | Smooth Bar |
| Bottom Slider Bar | 1/2" Reinforced Steel |
| Carriage Design | Walk-Through |
| Carriage Options | 4' and 5' |
| Fork Options | 4' and 5' |
| Mixed Configurations | Available |
| Carriage Height | 37" |
| Hydraulic Requirements | Compatible Skid Steer Auxiliary Hydraulics |
| Country of Manufacture | USA |
| Manufacturer Warranty | 2 Years |
| Model | Carriage | Forks | Weight |
|---|---|---|---|
| PF HY 4x4 | 4' | 4' | 515 lbs |
| PF HY 4x5 | 4' | 5' | 555 lbs |
| PF HY5x4 | 5' | 4' | 560 lbs |
| PF HY 5x5 | 5' | 5' | 645 lbs |
| Option | 4' Size | 5' Size |
|---|---|---|
| Carriage Width | 47.25" | 59.25" |
| Fork Length | 59" | 71" |
| Carriage Height | 37" | 37" |
Configuration Note: The manufacturer offers 4' and 5' carriage sizes with corresponding 4' and 5' fork options. The 4' and 5' designations identify the available configurations; see the listed dimensions for the manufacturer's measurements.
Lifting Capacity: The forks carry a manufacturer rating of 5,500 lbs. Actual allowable load capacity is limited by the skid steer's rated operating capacity, attachment weight, load center, and operating conditions. The fork rating does not mean every skid steer can safely lift 5,500 lbs.
Machine Compatibility: Designed for compatible skid steers equipped with the SSQA mounting system and auxiliary hydraulics. Confirm hydraulic connections and machine lifting capacity before selecting a configuration.
