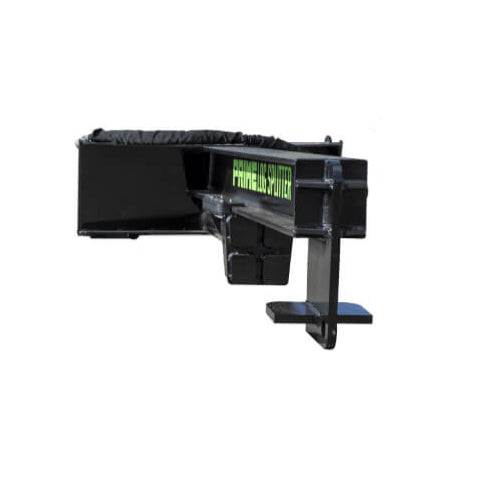

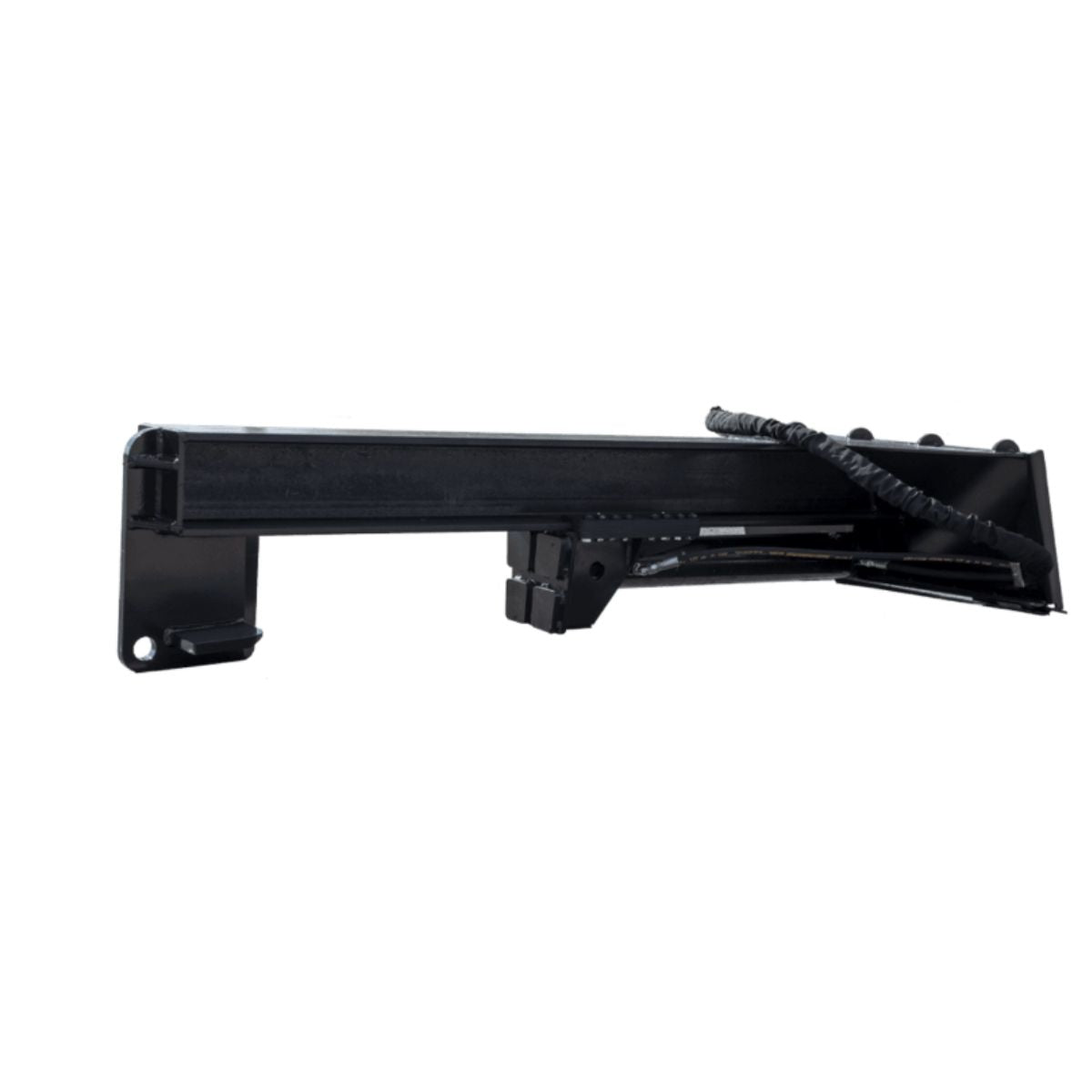

Inverted Log Splitter for Skid Steer — Prime Attachments

SKU LPS
$3,400.00
Wedge Style
Built to order — 2-6 week build time
Secure checkout Authorized dealer Ships from the USA

Notify me when back in stock

Fast USA Shipping
Ordered
Nov 19
Order Ready
Built to order — 2-6 week build time Est. Dec 9 – Dec 10
Delivered
Dec 15 - Dec 17
Estimate Shipping to Your Door

Enter your email and delivery ZIP to get a freight estimate.

Ships by Freight Truck
Delivering to:
Do you have a forklift or loading dock?
Yard Patriots price match specialist

Call/Text
or email for
our best deal

Why Buy From Yard Patriots?

American Built Brands We prioritize Quality American Made Equipment.
Talk to an American Call/text 833-405-1700 before you buy. We confirm fit, freight & lead time so you order right the first time.
Freight & Warranty Support We coordinate your LTL delivery and guide you through warranty claims. You’re not on your own after checkout.

Process More Firewood with a Skid Steer Hydraulic Log Splitter

30 tons of splitting force, a 30" hydraulic stroke, and a 12 second cycle with your choice of a single wedge or 4 way splitting wedge.

Wrestling heavy logs onto a traditional splitter gets old fast, especially when you're processing an entire woodpile. The Prime Attachments Inverted Log Splitter lets you position the wedge over logs on the ground and split them using your skid steer's hydraulics. Instead of repeatedly lifting oversized rounds onto a splitting beam, you can do the heavy positioning with the machine.

Powered by a 5" hydraulic cylinder rated for 30 tons of splitting force, this attachment features a 30" stroke and 12 second cycle speed. Its heavy 5/8" commercial grade I beam provides the structural backbone for splitting tough hardwood and large rounds during firewood processing and land cleanup.

Choose the single wedge for traditional two piece splitting or the 4 way wedge to produce multiple pieces during a single splitting cycle. Both configurations use the same heavy duty frame and are built for landowners, firewood producers, and contractors who want to turn their skid steer into a productive wood splitting machine.

Split Heavy Logs Without Constantly Lifting Them by Hand

30 TON HYDRAULIC SPLITTING FORCE

The 5" hydraulic cylinder provides manufacturer rated splitting force of 30 tons for processing tough hardwood, large rounds, and demanding firewood loads.

30" CYLINDER STROKE

A full 30" hydraulic stroke provides travel for splitting substantial logs and rounds during firewood processing.

12 SECOND CYCLE SPEED

Prime's 2026 catalog lists a 12 second cycle speed, helping operators move through repetitive splitting work efficiently.

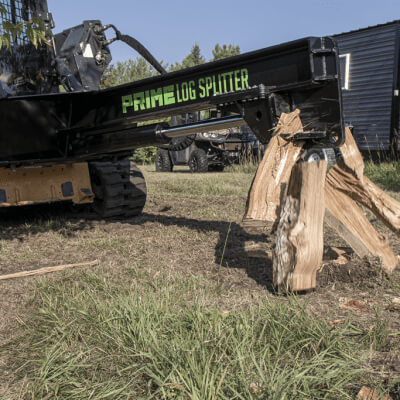

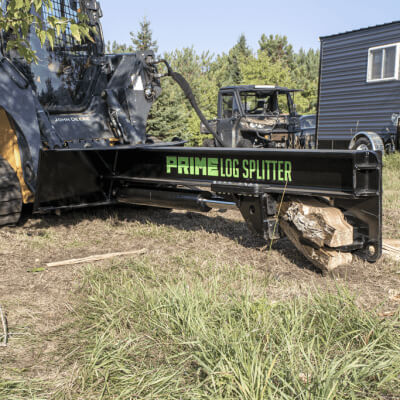

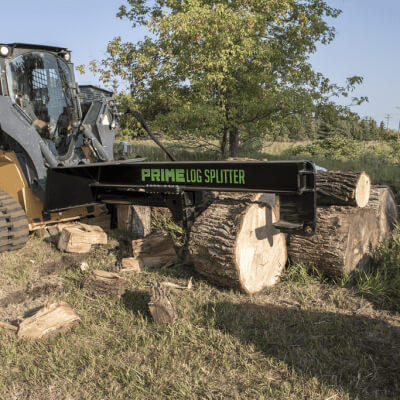

INVERTED GROUND LEVEL SPLITTING

Position the splitter over logs using the skid steer, reducing the need to manually lift heavy rounds onto a conventional splitting platform.

SINGLE OR 4 WAY WEDGE

Choose a single wedge for traditional splitting or the 4 way configuration for producing multiple pieces during one splitting cycle.

5/8" COMMERCIAL GRADE I BEAM

The thick steel I beam provides a reinforced frame designed to withstand the forces involved in repeated heavy log splitting.

Prime Attachments Inverted Log Splitter Specifications

Specification Details
Manufacturer Prime Attachments
Attachment Type Inverted Skid Steer Log Splitter
Mounting System Skid Steer Quick Attach (SSQA)
Rated Splitting Force 30 Tons
Cylinder Diameter 5"
Cylinder Stroke 30"
Published Cycle Speed 12 Seconds
Wedge Options Single Wedge or 4 Way Wedge
Frame Construction 5/8" Commercial Grade Steel I Beam
Manufacturer Stated Log Diameter Up to 30"
Overall Length 96"
Overall Width 63-1/2"
Overall Height 22"
Operation Skid Steer Auxiliary Hydraulics
Primary Applications Firewood Processing, Large Log Splitting, Woodlot Maintenance, and Land Cleanup
Country of Manufacture USA
Manufacturer Warranty 2 Years

Single Wedge vs. 4 Way Wedge Models

Specification Single Wedge 4 Way Wedge
SKU LPS LS4
Splitting Style Single Split 4 Way Split
Cylinder 5" / 30 Ton 5" / 30 Ton
Stroke 30" 30"
Listed Weight 815 lbs 816 lbs

Which Splitting Wedge Should You Choose?

Single Wedge (LPS): The traditional splitting configuration divides a log into two pieces during a full splitting pass. It's a practical option for working through large or difficult rounds and for operators who prefer more control over the size of each piece.

4 Way Wedge (LS4): The 4 way configuration is designed to produce multiple firewood pieces during a single splitting pass. It can reduce the number of times a log needs to be repositioned when processing suitable rounds into firewood.

Inverted Splitting Design: Unlike a conventional standalone splitter, the inverted configuration allows operators to position the attachment over logs resting on the ground. The skid steer's lift and tilt functions help position the splitter without requiring each round to be manually loaded onto a separate machine.

Cylinder Stroke vs. Log Diameter: Prime specifies a 30" hydraulic cylinder stroke and separately describes logs up to 30" in diameter. The stroke measures cylinder travel, while log diameter describes the thickness of the round.

Cycle Speed: The 2026 product catalog lists a 12 second cycle speed. Actual operating speed depends on the hydraulic flow available from the skid steer and operating conditions.

Machine Compatibility: Designed for compatible skid steers equipped with the Skid Steer Quick Attach mounting system and auxiliary hydraulics. Confirm your loader's operating capacity, hydraulic specifications, and attachment compatibility before ordering.
