27-Inch Portable Mini Trencher With EZ Kart
Dig clean, narrow trenches for irrigation, lighting, root barriers, pipe, and wire installs with a compact trencher built for jobsite mobility.

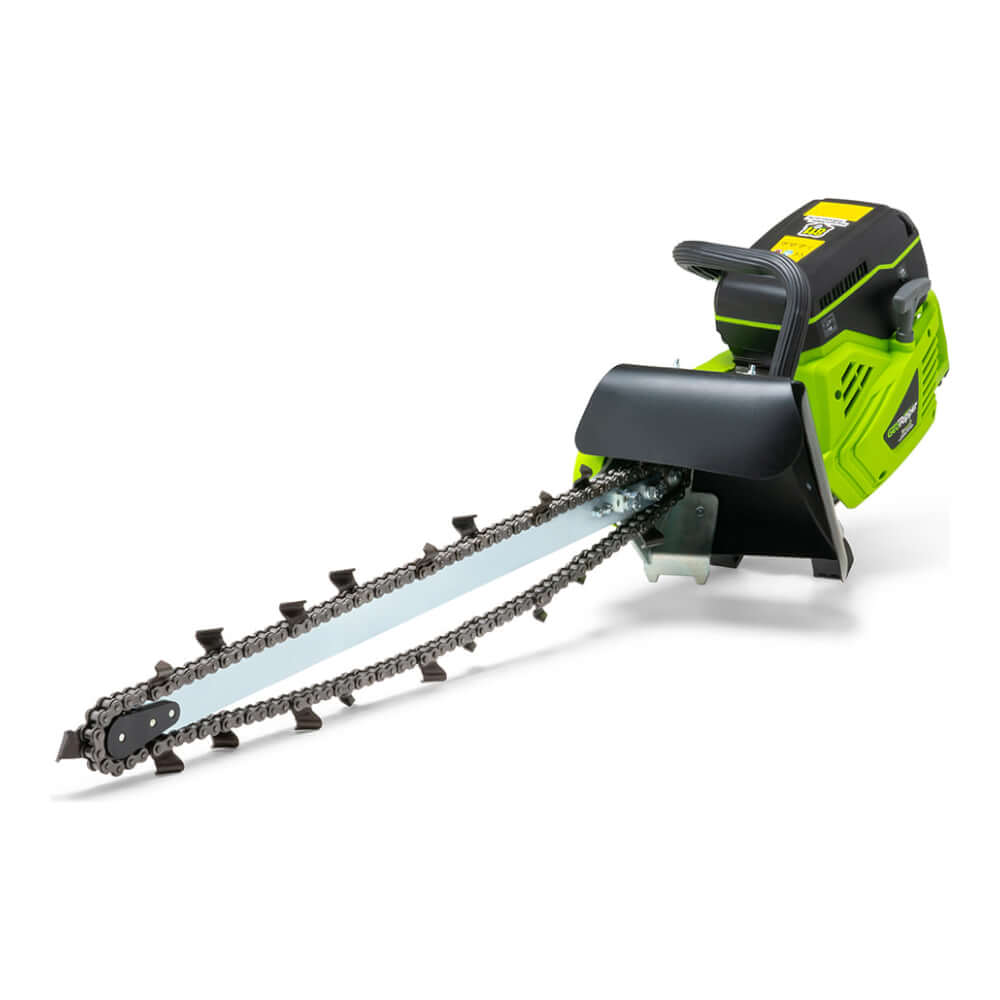

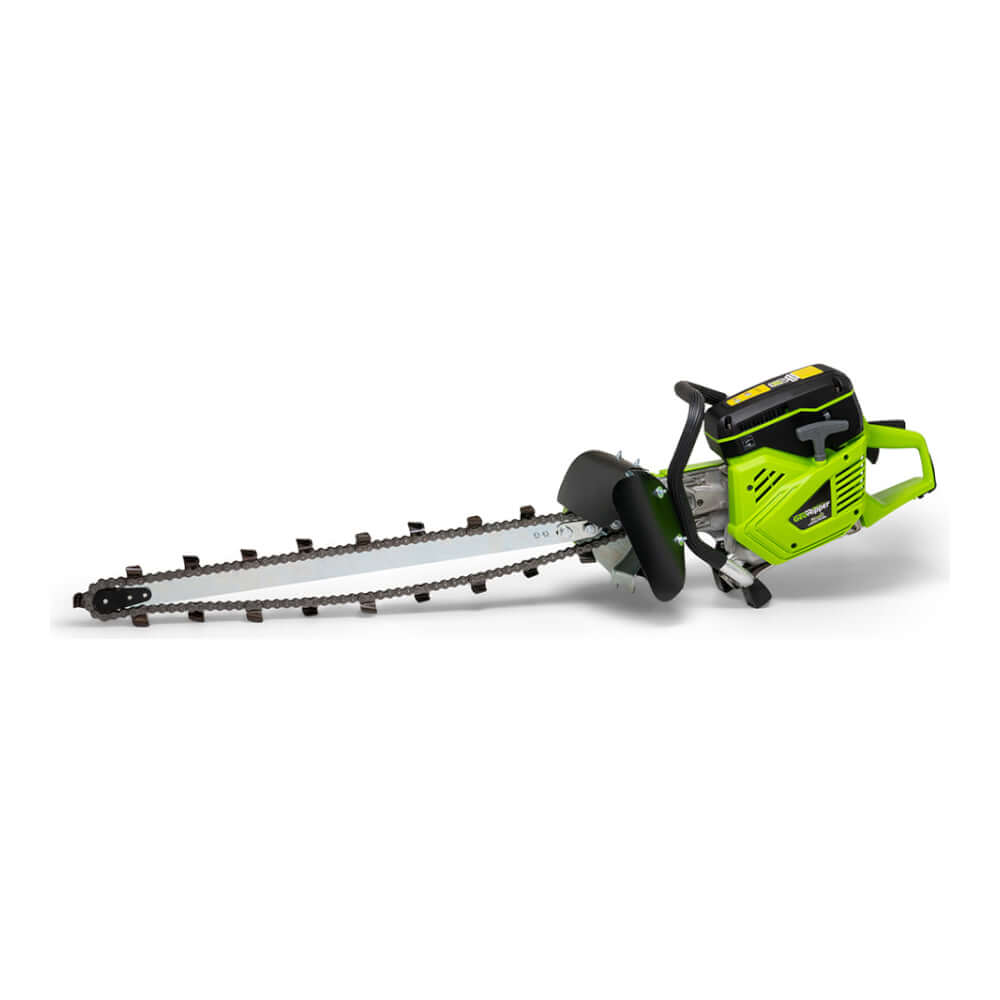

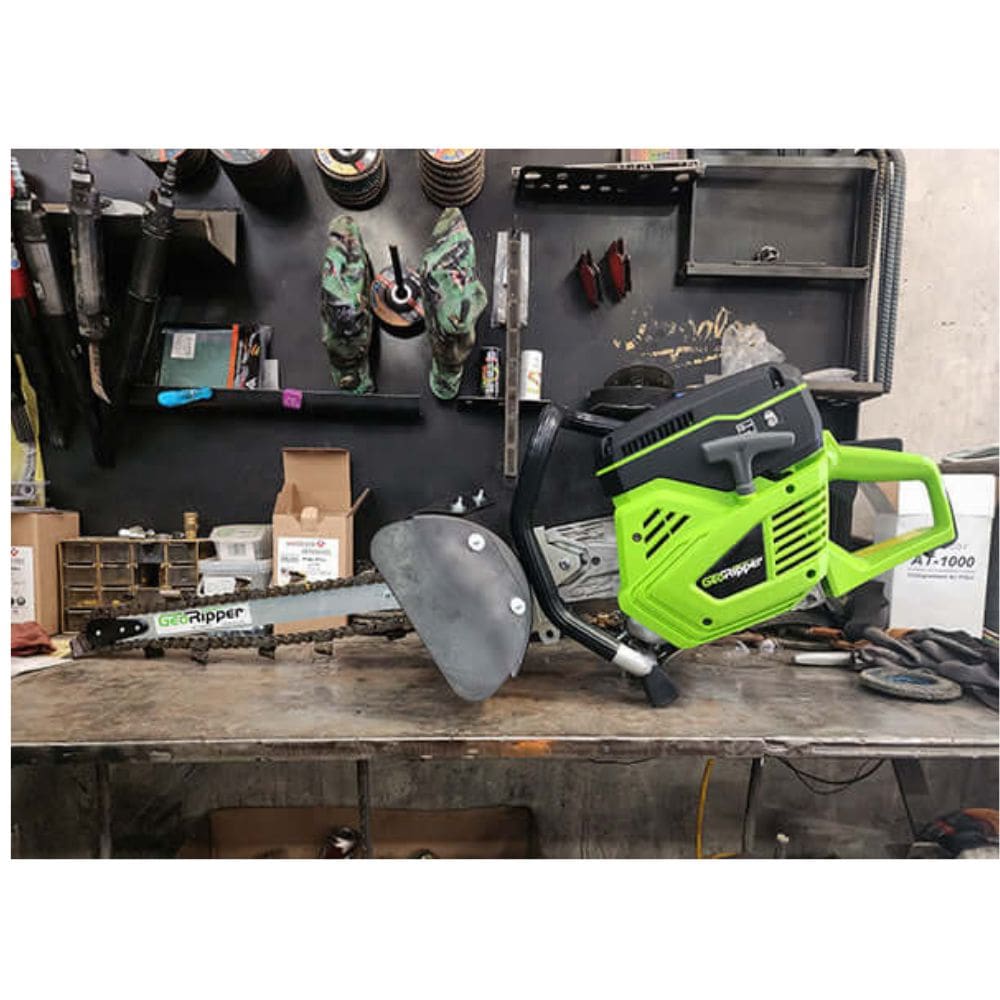

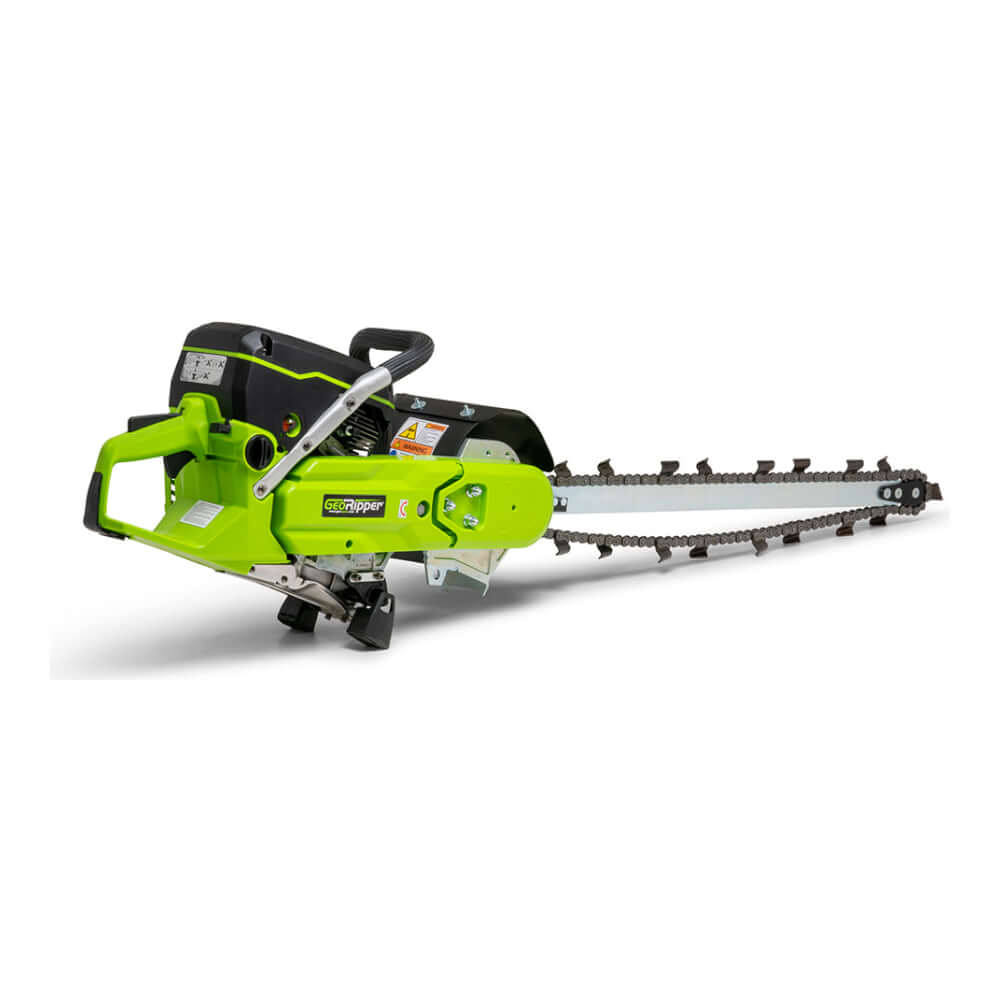

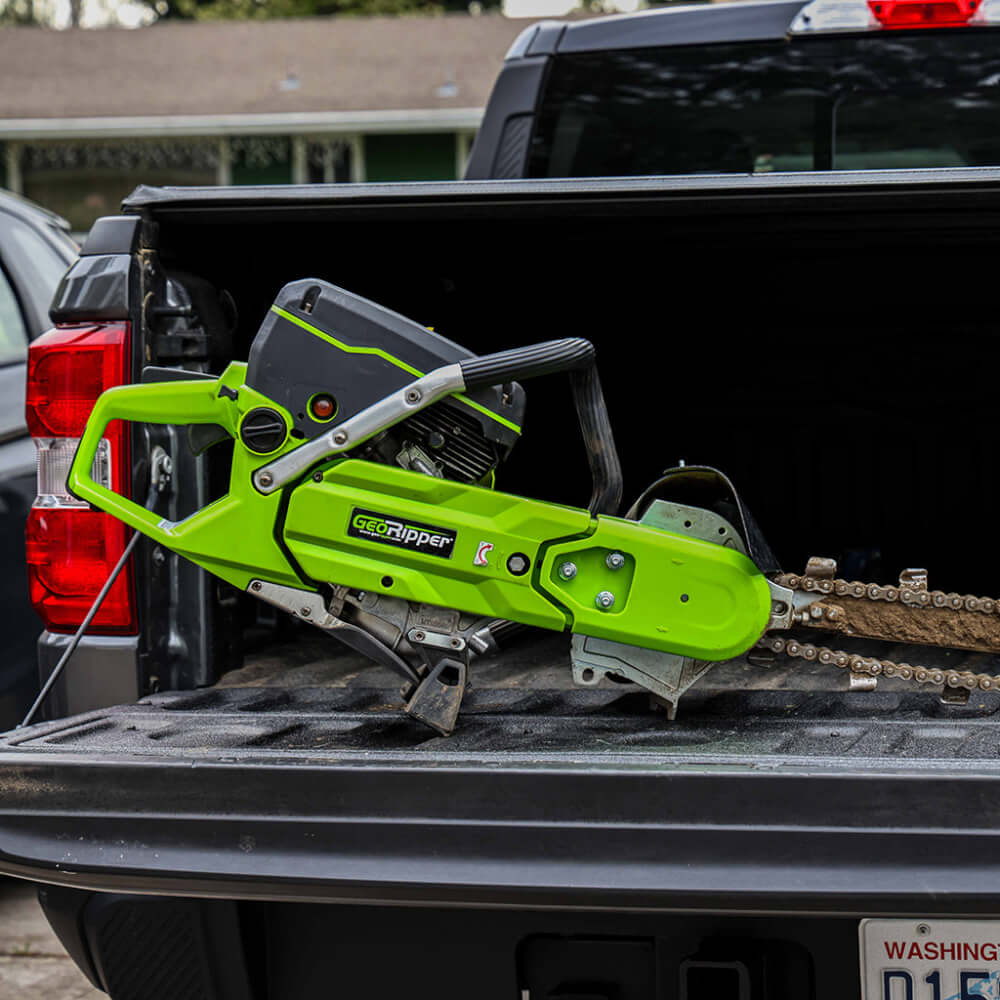

The GeoRipper GR27 Trencher with EZ Kart is a portable mini trencher designed for narrow trenching where a full-size trencher is too large and hand-digging is too slow. This Yard Patriots listing includes the EZ Kart, giving operators handheld-style access with walk-behind support for longer runs.
Powered by a 74cc 2-stroke GeoRipper engine, the GR27 delivers 4.7 HP and a maximum digging depth of 27 inches. It is built for daily trenching work such as irrigation lines, root barriers, landscape lighting, underground pipe, and wire installations.
The included EZ Kart attaches with a slide-bolt and trigger system to help turn the handheld trencher into a compact walk-behind setup. That makes it a better fit for open runs and repeated trenching while still keeping the GeoRipper small enough for tighter access areas.
Self-sharpening digging chains, spring-loaded vibration control, Vortex Air Filtration, and an easy pull starter help keep the GR27 practical for crews and landowners who need precise trenching without bringing in larger rental equipment.
GeoRipper GR27 Trencher with EZ Kart Key Features
27-Inch Trenching Depth
Digs trenches up to 27 inches deep with a 2-inch-wide digging chain, making it useful for irrigation, lighting, root barrier, pipe, and wire applications.

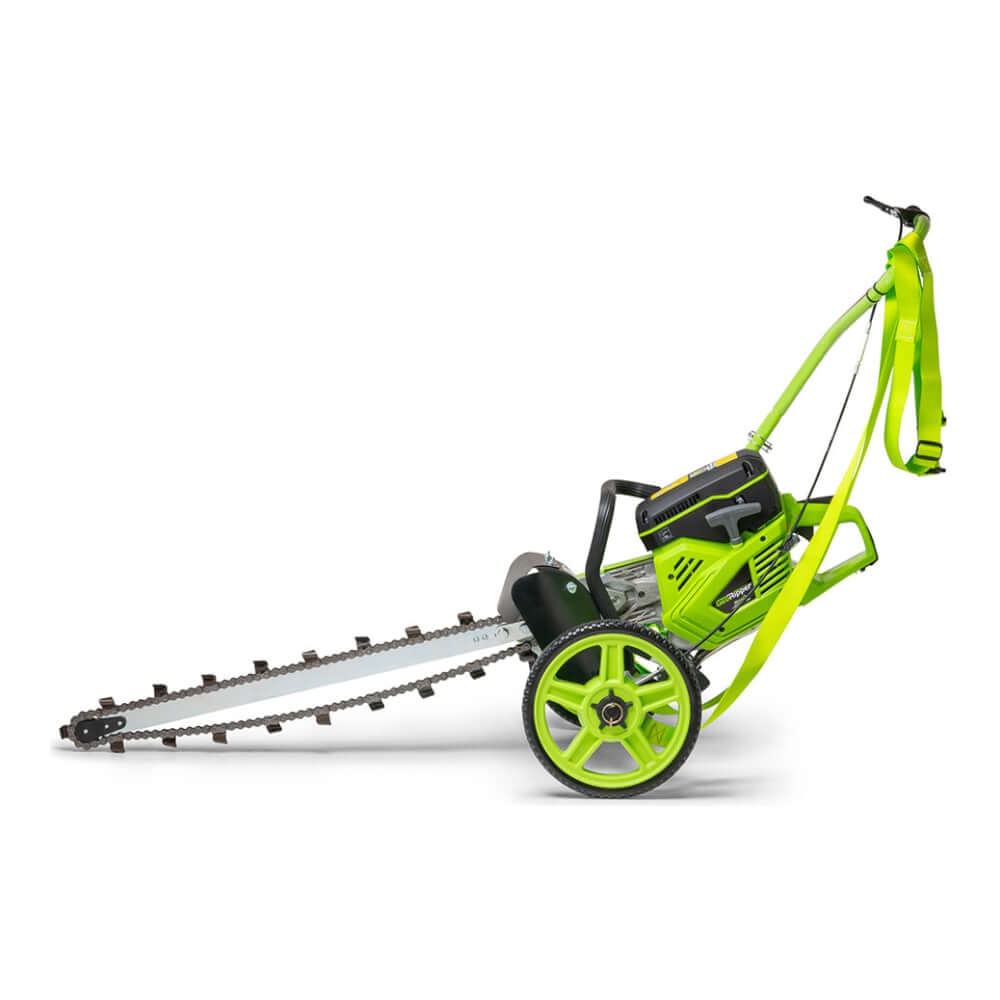

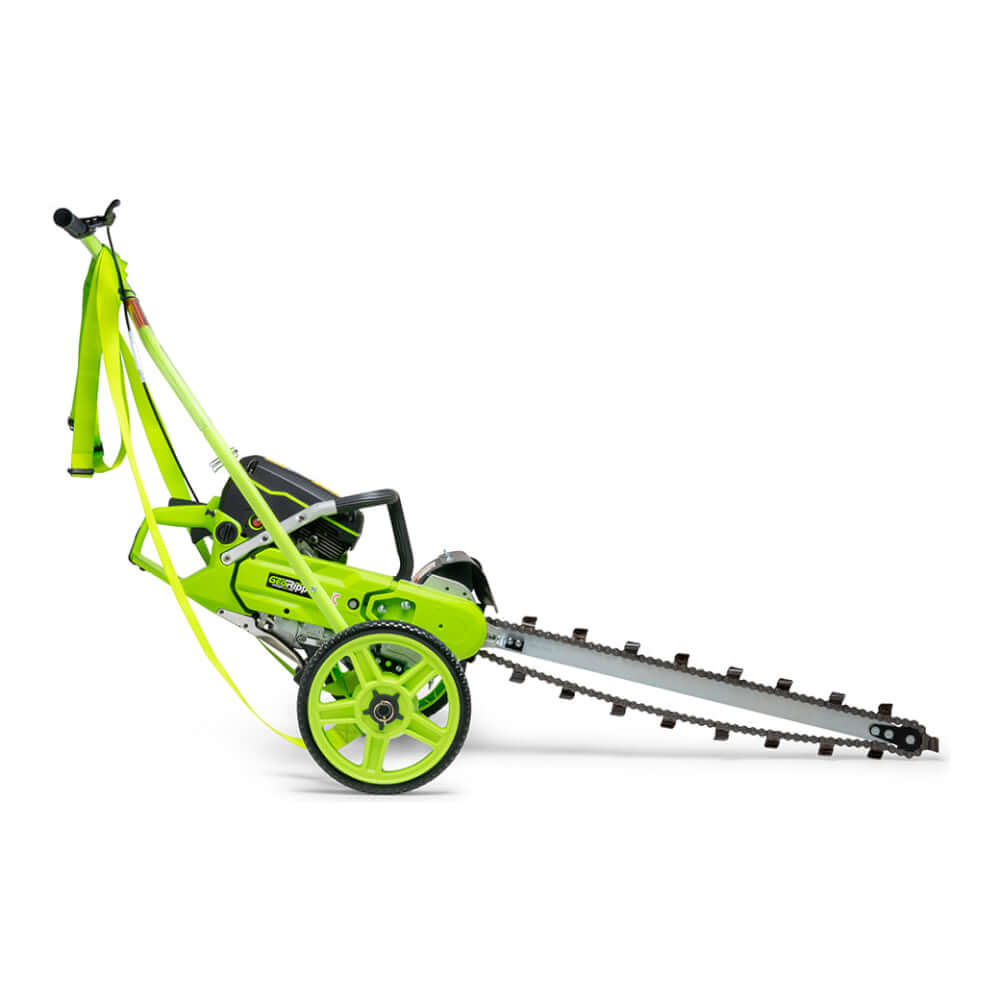

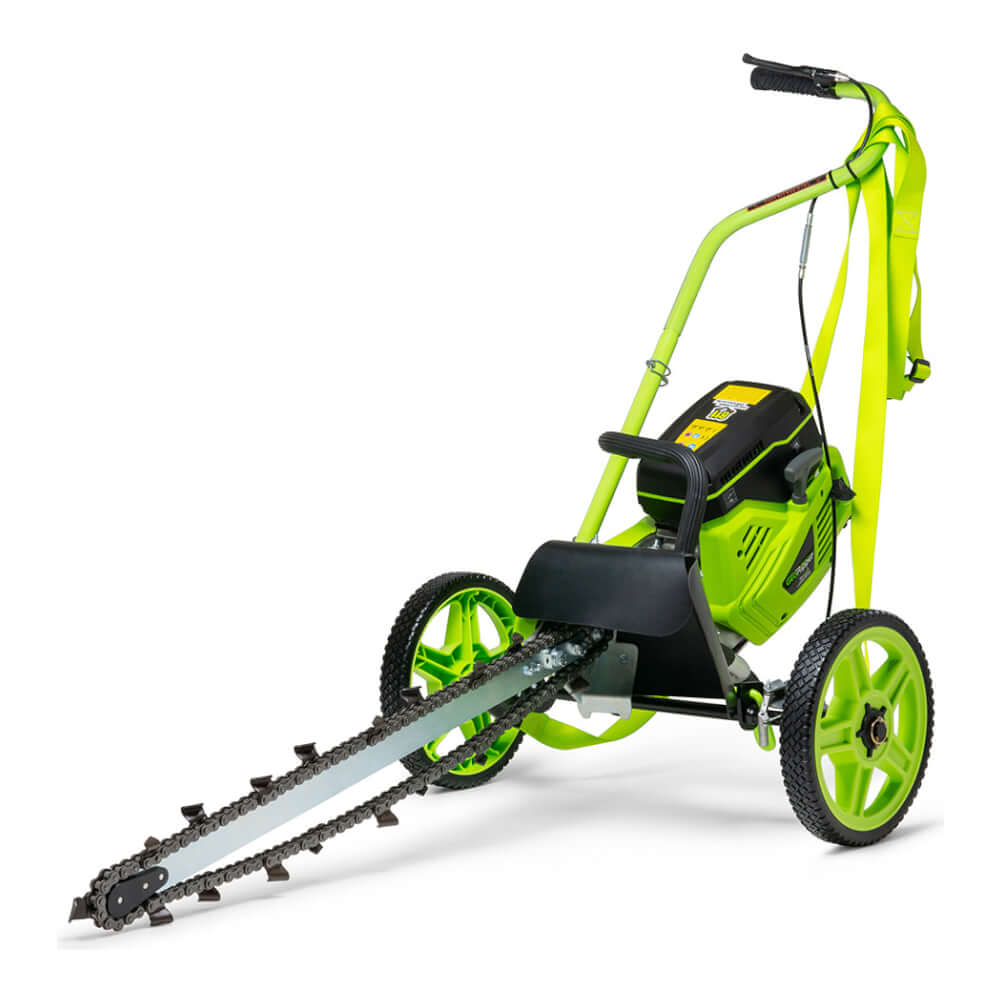

EZ Kart Included
The EZ Kart adds two-wheel walk-behind support for longer open runs while allowing the GeoRipper to remain compact and portable compared with larger trenchers.
74cc 2-Stroke Engine
The 4.7 HP GeoRipper engine is designed for the stresses of digging through soil and supports everyday narrow trenching work.
Built for Tough Ground Conditions
Self-sharpening digging teeth are listed to cut tree roots up to 3 inches below grade and remove rocks up to 4 inches wide.
Operator-Focused Design
Spring-loaded vibration control, an easy pull starter, and compact handling help reduce fatigue during repeated trenching jobs.
Clean Engine Intake
The Vortex Air Filtration system helps keep the engine intake cleaner during dusty digging work.
GeoRipper GR27 Trencher with EZ Kart Specifications
| Model |
GeoRipper GR27 / GR727 |
| GNE SKU |
GR727.MIN |
| Configuration |
With EZ Kart included |
| Maximum Digging Depth |
27 in. / 700 mm |
| Digging Chain Width |
2 in. |
| Engine |
74cc 2-stroke engine |
| Power Output |
4.7 HP |
| Noise Level |
116 dB |
| Root Cutting Capability |
Tree roots up to 3 in. below grade |
| Rock Removal Capability |
Rocks up to 4 in. wide |
| Included Components |
- GeoRipper two-stroke engine
- 27 in. digging bar with nose bar end assembly and nose sprocket
- Two 27 in. x 2 in. digging chains
- Additional drive belt
- Nose bearing
- Bar end assembly screws
- Engine tool kit
- Chain connector link
- 18mm and 13mm combination wrench
- GeoRipper owner's manual
- EZ Kart
|
