16-Inch Portable Handheld Mini Trencher
Dig narrow, clean trenches for irrigation, lighting, root barriers, pipe, and wire installs without bringing in a full-size trencher.

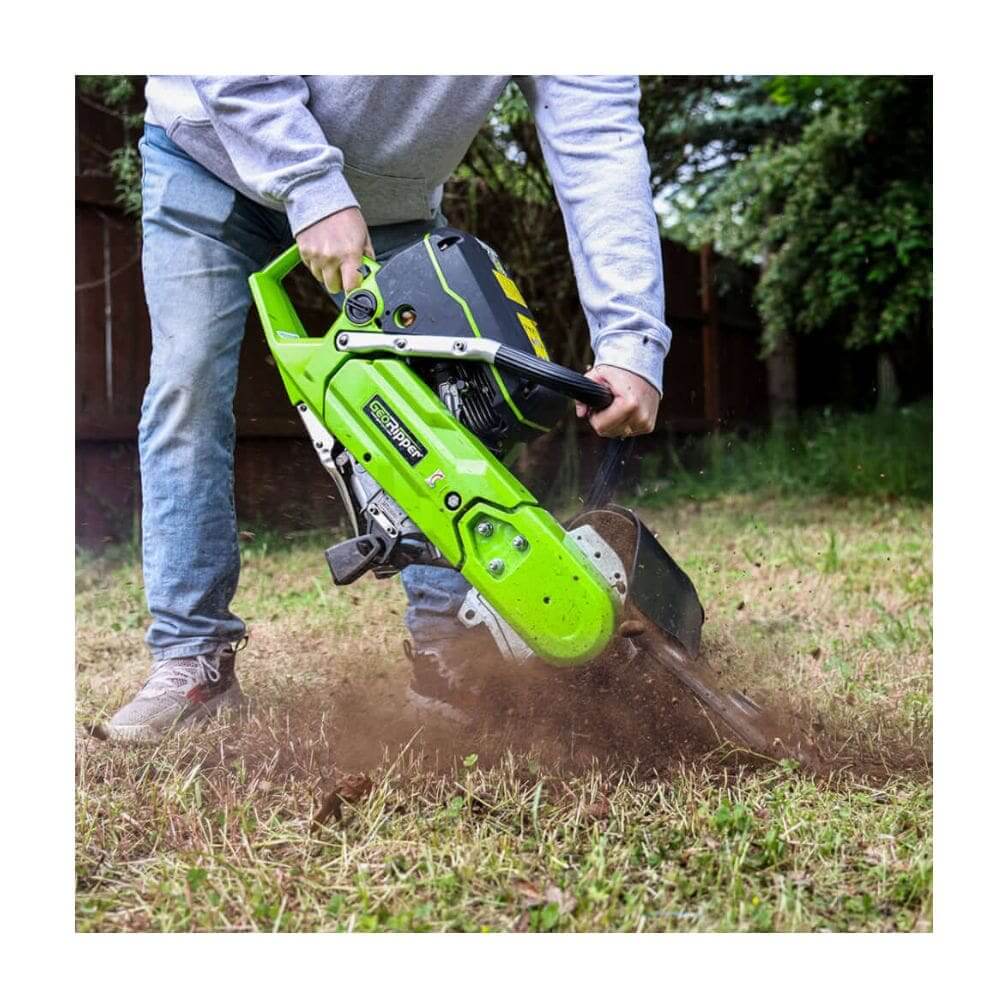

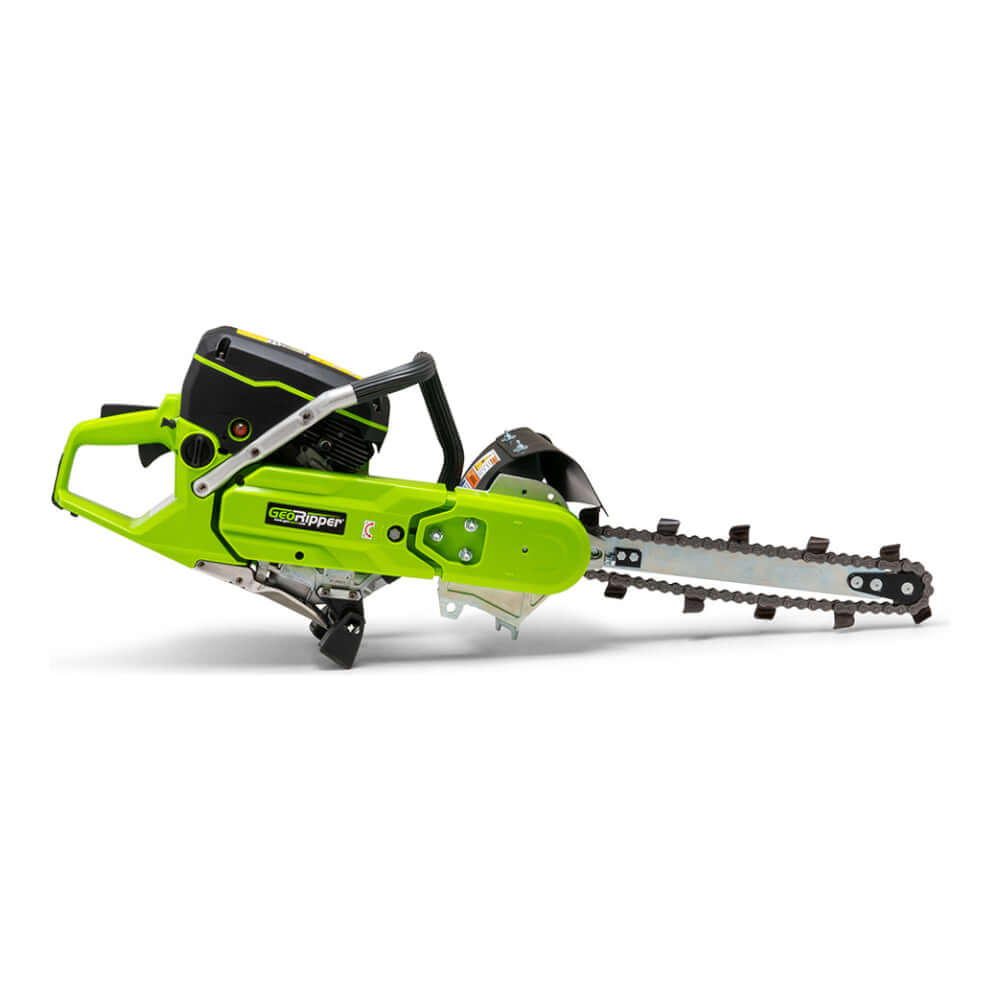

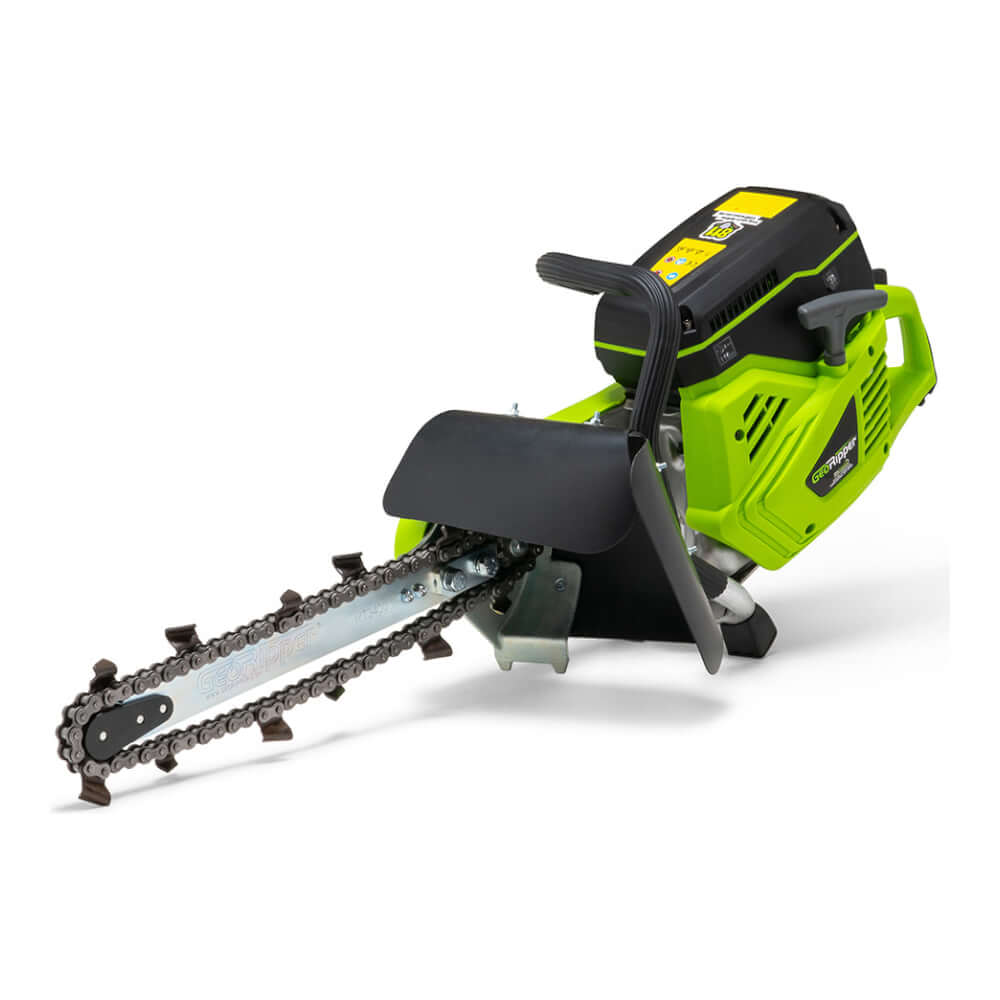

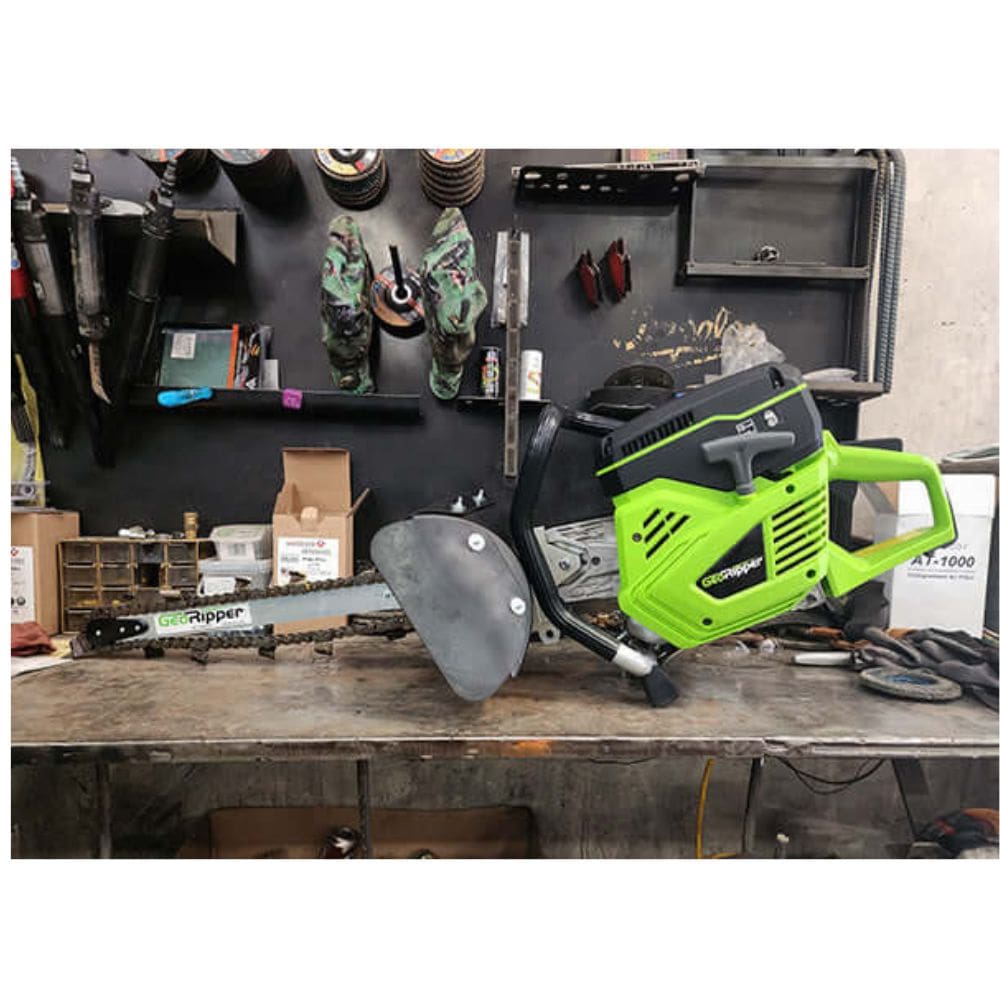

The GeoRipper GR16 Trencher is a portable handheld mini trencher built for jobs where hand digging is too slow and larger trenchers are too bulky. Its compact format makes it practical for landscaping, irrigation, utility, and property maintenance work.
Powered by a 74cc 2-stroke engine, this GeoRipper delivers 4.7 HP with a maximum digging depth of 16 inches. The 2-inch digging chain creates a narrow trench for underground installations while limiting unnecessary turf disruption.
Self-sharpening digging chains, spring-loaded vibration control, Vortex Air Filtration, and an easy pull starter help keep daily trenching work more manageable for crews and landowners.
GeoRipper GR16 Trencher Key Features
16-Inch Trenching Depth
Digs up to 16 inches deep for irrigation, landscape lighting, root barrier, pipe, and wire applications.
2-Inch Digging Chain
Creates a narrow trench that fits common underground installation work without opening more ground than needed.
74cc 2-Stroke Engine
The 4.7 HP GeoRipper engine is designed for the stresses of earth digging and everyday narrow trenching.
Built for Tough Ground Conditions
Self-sharpening digging teeth are listed to cut tree roots up to 3 inches below grade and remove rocks up to 4 inches wide.
Operator-Focused Design
Minimal pull-start force, reduced vibration, and compact handling help make repeated trenching work easier to control.
Clean Intake System
The intake design helps maintain engine performance during dusty digging work.
GeoRipper GR16 Trencher Specifications
| Model |
GR16 |
| GNE SKU |
GR416.MIN |
| Equipment Type |
Mini Trencher |
| Maximum Digging Depth |
16 in. / 400 mm |
| Digging Chain Width |
2 in. |
| Engine |
74cc 2-stroke engine |
| Power Output |
4.7 HP |
| Noise Level |
116 dB |
| Root Cutting Capability |
Tree roots up to 3 in. below grade |
| Rock Removal Capability |
Rocks up to 4 in. wide |
| Included Components |
- GeoRipper two-stroke engine
- 16 in. digging bar with nose bar end assembly and nose sprocket
- Two 16 in. x 2 in. digging chains
- Additional drive belt
- Nose bearing
- Bar end assembly screws
- Engine tool kit
- Chain connector link
- 18mm and 13mm combination wrench
- GeoRipper owner's manual
|
