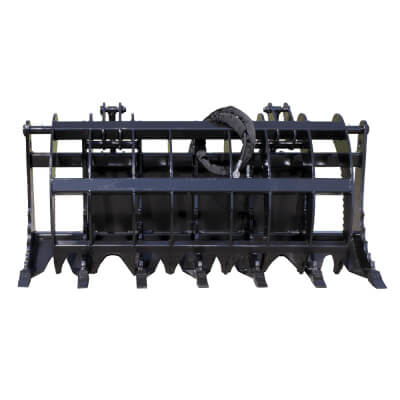

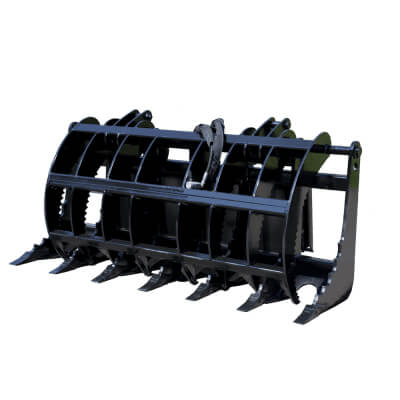

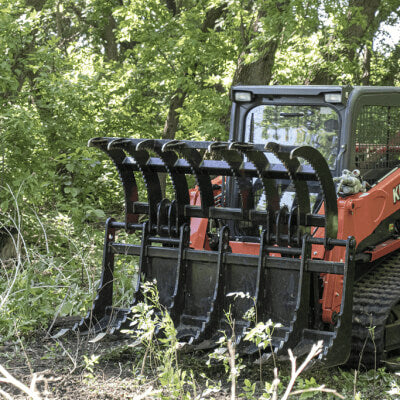

Clamshell Grapple for Skid Steer — Prime Attachments
Enter your email and delivery ZIP to get a freight estimate.
A massive 51" grapple opening, reinforced Grade 50 steel tines, and dual hydraulic cylinders for handling brush, logs, roots, and heavy debris.

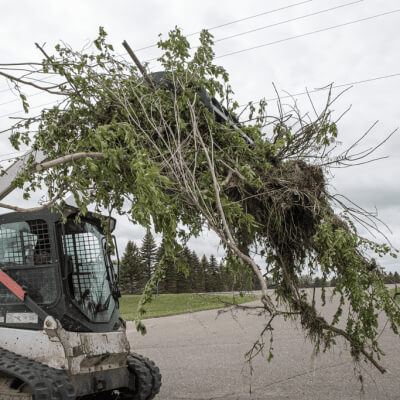

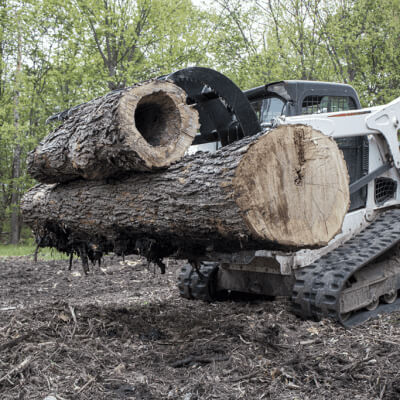

Big brush piles, tangled roots, and heavy logs can turn land clearing into a slow process when your attachment can't grab enough material in one load. The Prime Attachments Clam Grapple features a 51" grapple opening that allows operators to gather and secure bulky debris, helping clear overgrown properties, construction sites, and storm damage more efficiently.
Built from Grade 50 steel, this heavy duty grapple combines 3/4" lower tines with a 1/2" upper clam. Two 3,000 PSI hydraulic cylinders operate the clamping mechanism, while serrated upper teeth help grip irregular material. Reinforced tines, fully gusseted framing, and replaceable digging teeth provide the durability needed for demanding land clearing and demolition cleanup.
Available in 66", 74", and 86" widths, the Clam Grapple includes greaseable pivot points, grapple stops, and hydraulic cylinder protection. Its universal Skid Steer Quick Attach (SSQA) mounting system connects to compatible machines, giving contractors, farmers, and landowners a practical tool for moving large debris and reclaiming usable ground.
51" GRAPPLE OPENING
The large opening gives operators room to grab bulky brush piles, logs, roots, and demolition debris without constantly breaking loads into smaller pieces.
DUAL 3,000 PSI HYDRAULIC CYLINDERS
Two hydraulic cylinders operate the single upper clam, providing controlled clamping action for securing large and irregular loads.
3/4" GRADE 50 LOWER TINES
Heavy lower tines provide a strong working structure for digging into debris piles, lifting roots, and handling rugged material.

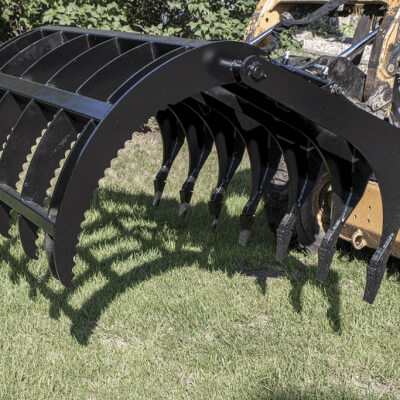

SERRATED UPPER CLAM
The 1/2" Grade 50 upper grapple features serrated gripping surfaces that help secure logs, brush, and uneven debris during transport.
REPLACEABLE DIGGING TEETH
Serviceable digging teeth allow worn contact points to be replaced, helping keep the attachment ready for demanding cleanup and excavation work.
REINFORCED FRAME AND PROTECTED CYLINDERS
Gusseted tines, reinforced framing, grapple stops, and cylinder protection are designed for durability during repeated heavy material handling.
| Specification | Details |
|---|---|
| Manufacturer | Prime Attachments |
| Attachment Type | Single Clam Skid Steer Grapple |
| Mounting System | Skid Steer Quick Attach (SSQA) |
| Available Sizes | 66", 74", and 86" |
| Grapple Opening | 51" |
| Upper Grapple | Single Clam with Serrated Teeth |
| Upper Grapple Steel | 1/2" Grade 50 Steel |
| Lower Tines | 3/4" Grade 50 Steel |
| Hydraulic Cylinders | Two 3,000 PSI Cylinders |
| Digging Teeth | Replaceable |
| Frame Construction | Commercial Grade Steel with Reinforced Gussets |
| Grapple Stops | Included |
| Pivot Points | Greaseable |
| Cylinder Protection | Included |
| Hydraulic Couplers | Universal Flat Face Couplers Unless Otherwise Requested |
| Overall Length | 36" |
| Overall Height | 36" |
| Primary Applications | Land Clearing, Brush Removal, Logs, Roots, Rocks, and Demolition Debris |
| Country of Manufacture | USA |
| Manufacturer Warranty | 2 Years |
| Model | Overall Width | Weight |
|---|---|---|
| CG 66 | 66.5" | 990 lbs |
| CG 74 | 74.5" | 1,095 lbs |
| CG 86 | 86.5" | 1,245 lbs |
Single Clam vs. Dual Clam: This model uses one full-width upper grapple operated by two hydraulic cylinders. Prime's separate Dual Clam Grapple features two independently operating upper grapples for handling uneven loads.
Machine Compatibility: Designed for compatible skid steers equipped with the SSQA mounting system and auxiliary hydraulics. Confirm your machine's operating capacity, hydraulic connections, and attachment weight before selecting a size.
Prime Attachments Clam Grapple Demonstration
