Rake up tangled brush, grab bulky debris, and get more clearing done with the loader you already own.
Cutting down overgrowth is one job. Getting the mess off the ground is another. Branches twist together, small trees get tangled in brush piles, and loose debris doesn't cooperate when you're trying to push it across a property with a bucket.

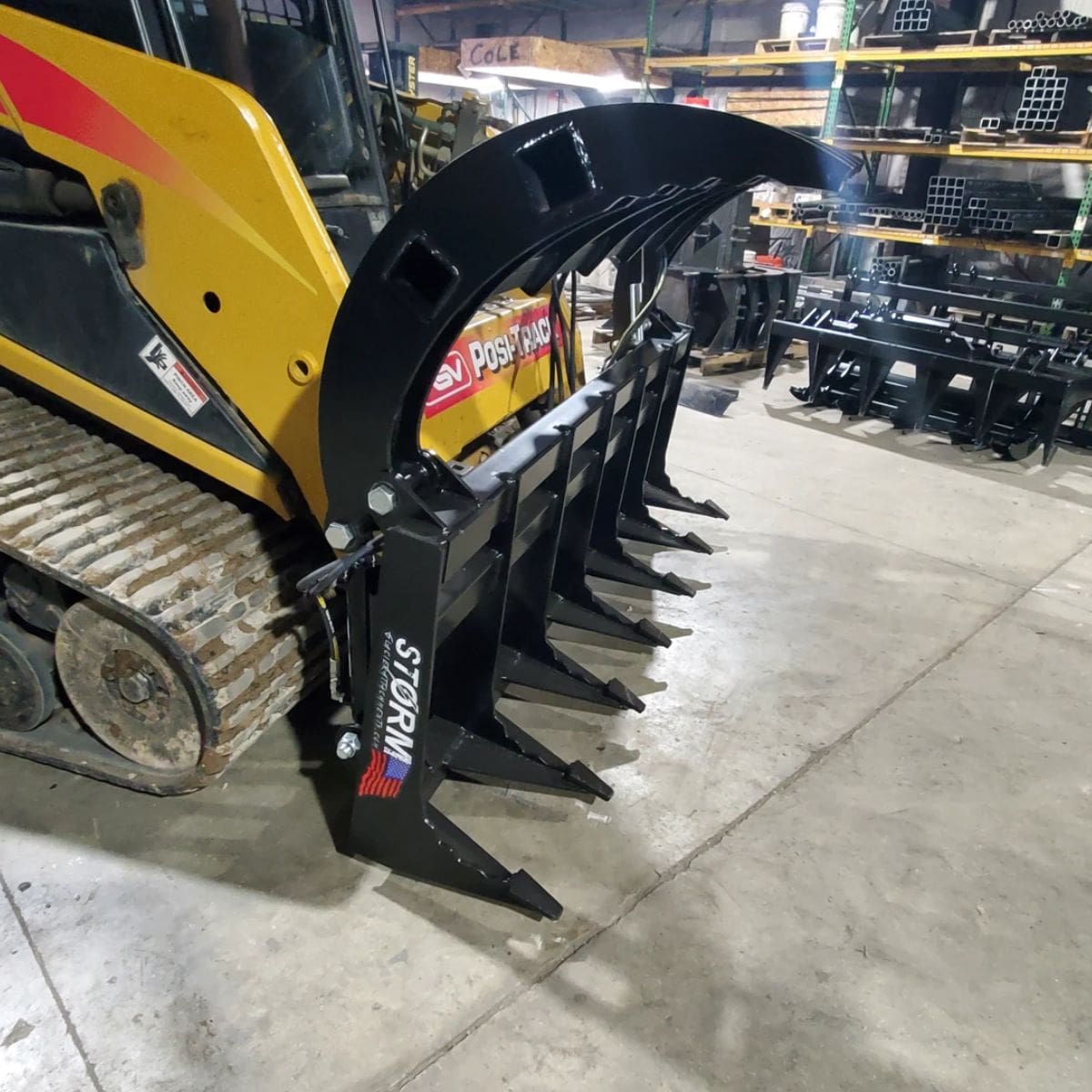

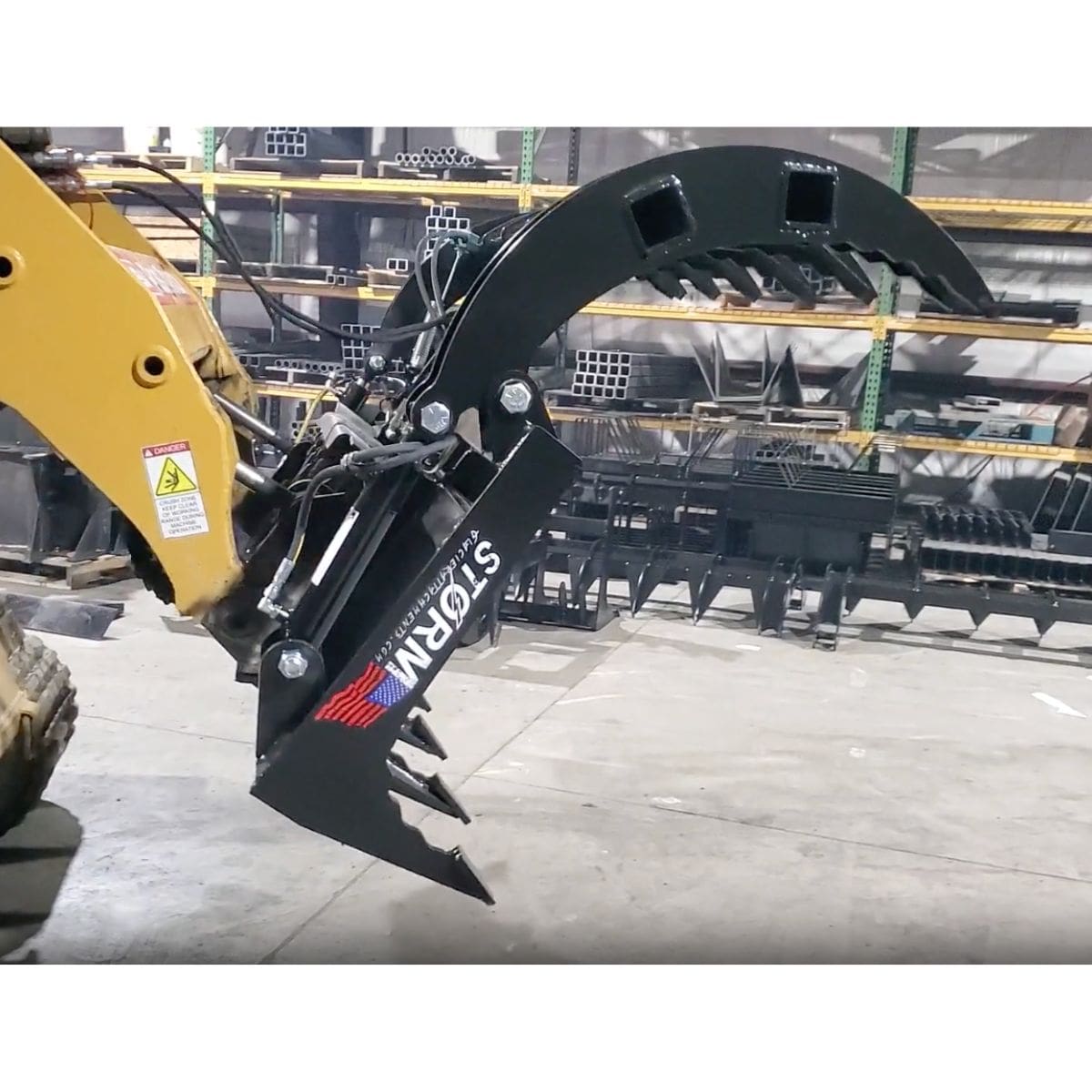

Storm Rake Grapples are built to tackle that part of the job. Their open rake design lets operators gather branches, logs, roots, and other bulky material, while the hydraulic upper claws help hold the load together for transport. Instead of repeatedly pushing scattered brush around, you can rake it into a pile, clamp down, and carry it away.
Choose from three 60" configurations or a 72" Heavy Duty model. The 60" lineup includes a single cylinder model rated for machines up to 50 HP, a lighter dual cylinder model for machines up to 35 HP, and a heavier dual cylinder model for machines up to 50 HP. The 72" HD Rake Grapple steps up to 3/8" tine and claw construction and is designed for machines up to 75 HP.

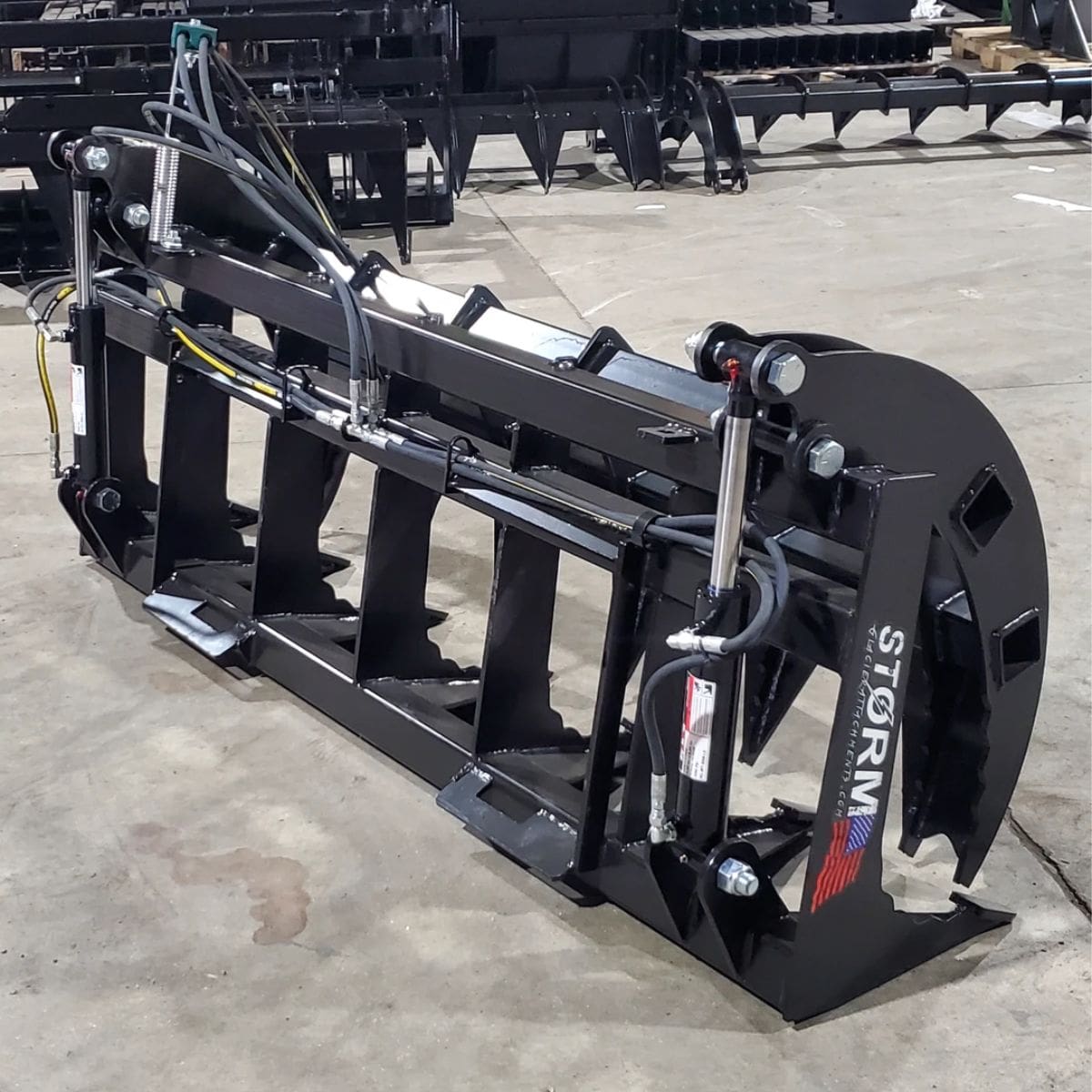

The hydraulic arrangement is another important difference. The single cylinder model uses a top mounted cylinder, while the dual cylinder models use rear mounted cylinders. The rear mounted design helps protect hydraulic components from branches and debris while allowing the upper claws to open around larger piles of material.
Built with high strength American steel and greaseable pivot points, these grapples are designed for the demanding cleanup work that comes with maintaining wooded acreage, farms, trails, fence lines, and construction properties.
Available with Skid Steer Quick Attach (SSQA) and John Deere Quick Attach (JDQA) configurations, Storm gives operators a choice of grapple design, working width, and machine connection. Pick the model that fits your equipment and get the brush pile moving.

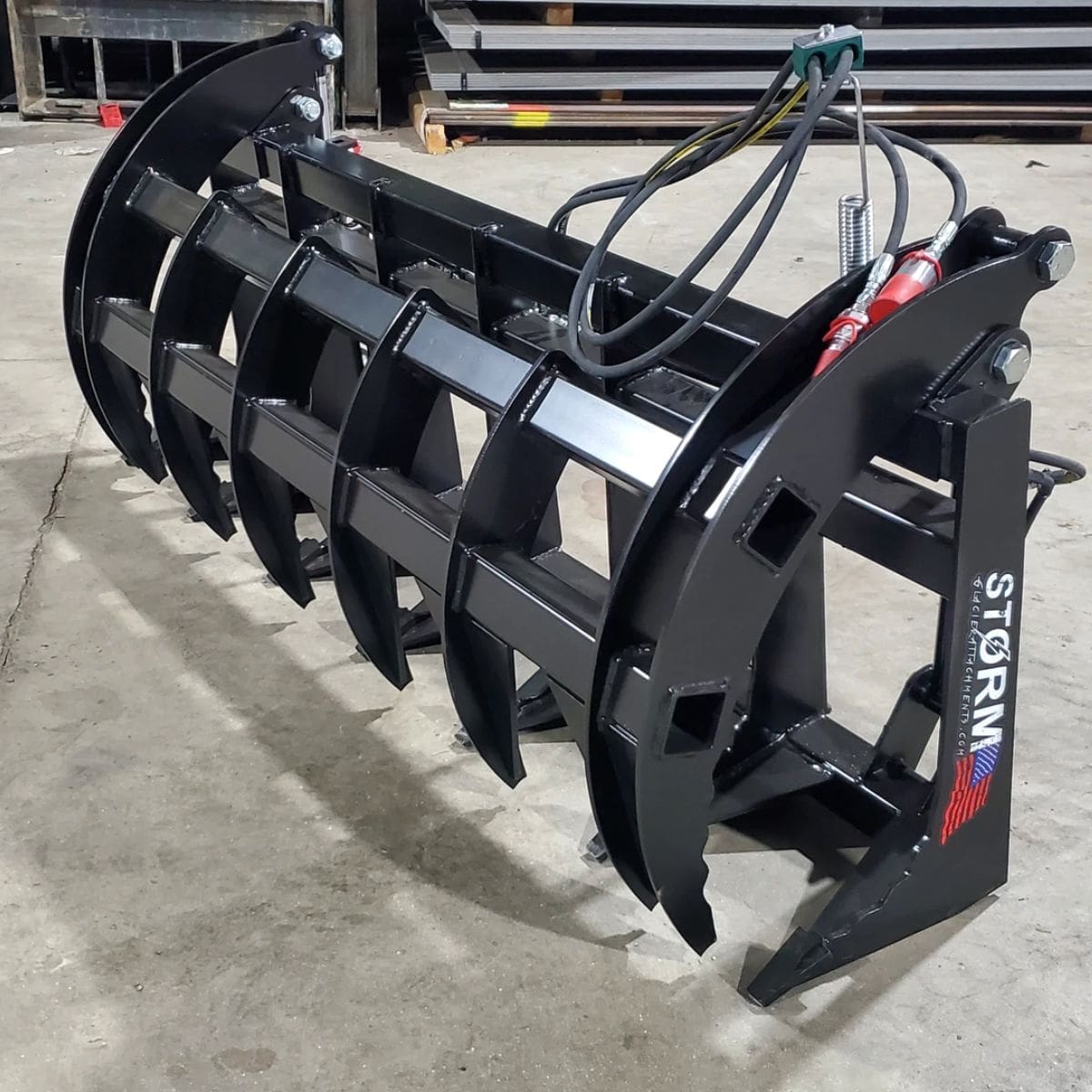

Open Rake Design for Brush Removal
The lower rake reaches underneath branches, roots, and loose debris while allowing dirt to pass through. This makes it easier to collect brush without carrying as much soil along with every load.
Single or Dual Hydraulic Cylinder Options

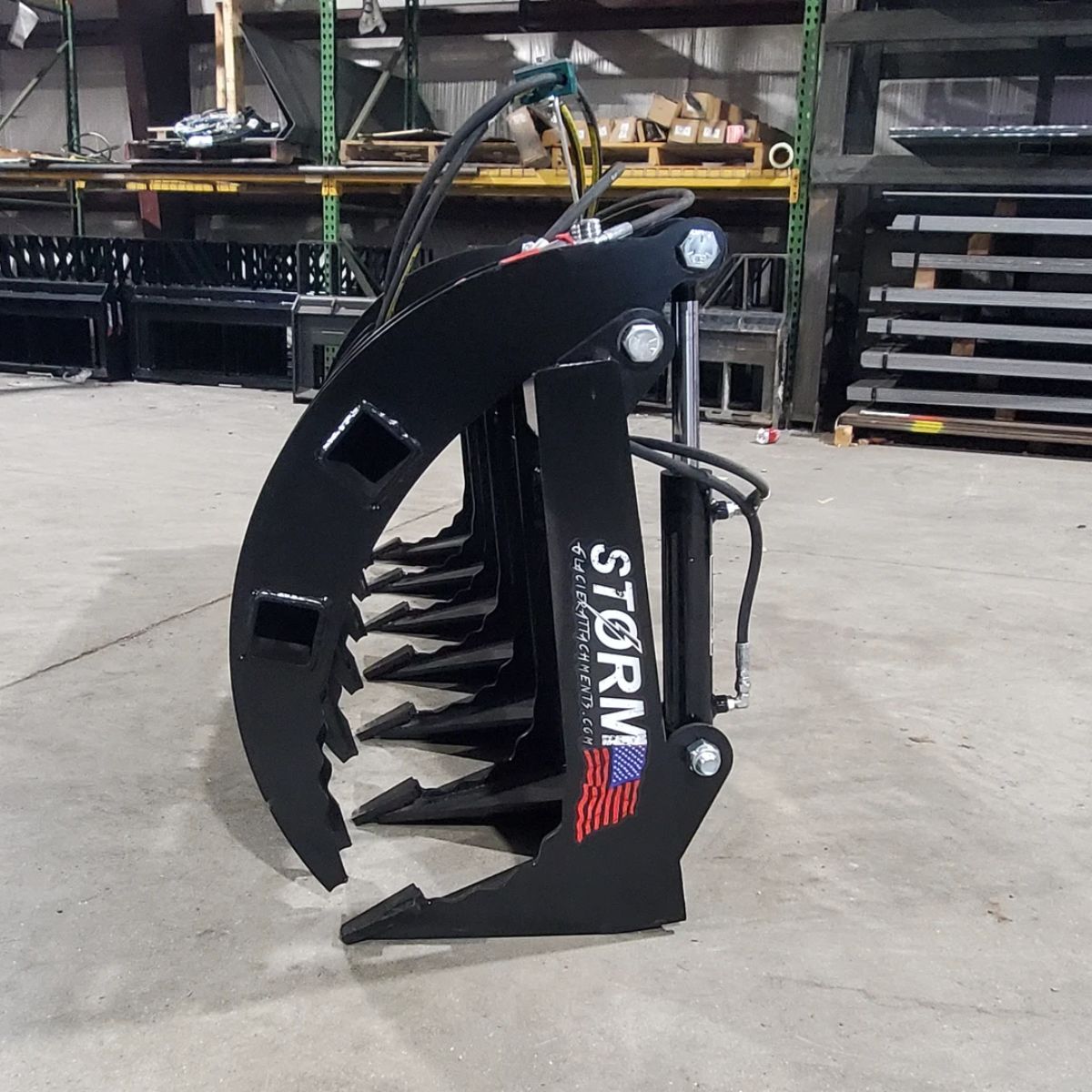

Choose a top mounted single cylinder grapple or one of the rear mounted dual cylinder configurations. Both designs provide hydraulic clamping, but the cylinder placement and machine recommendations differ between models.

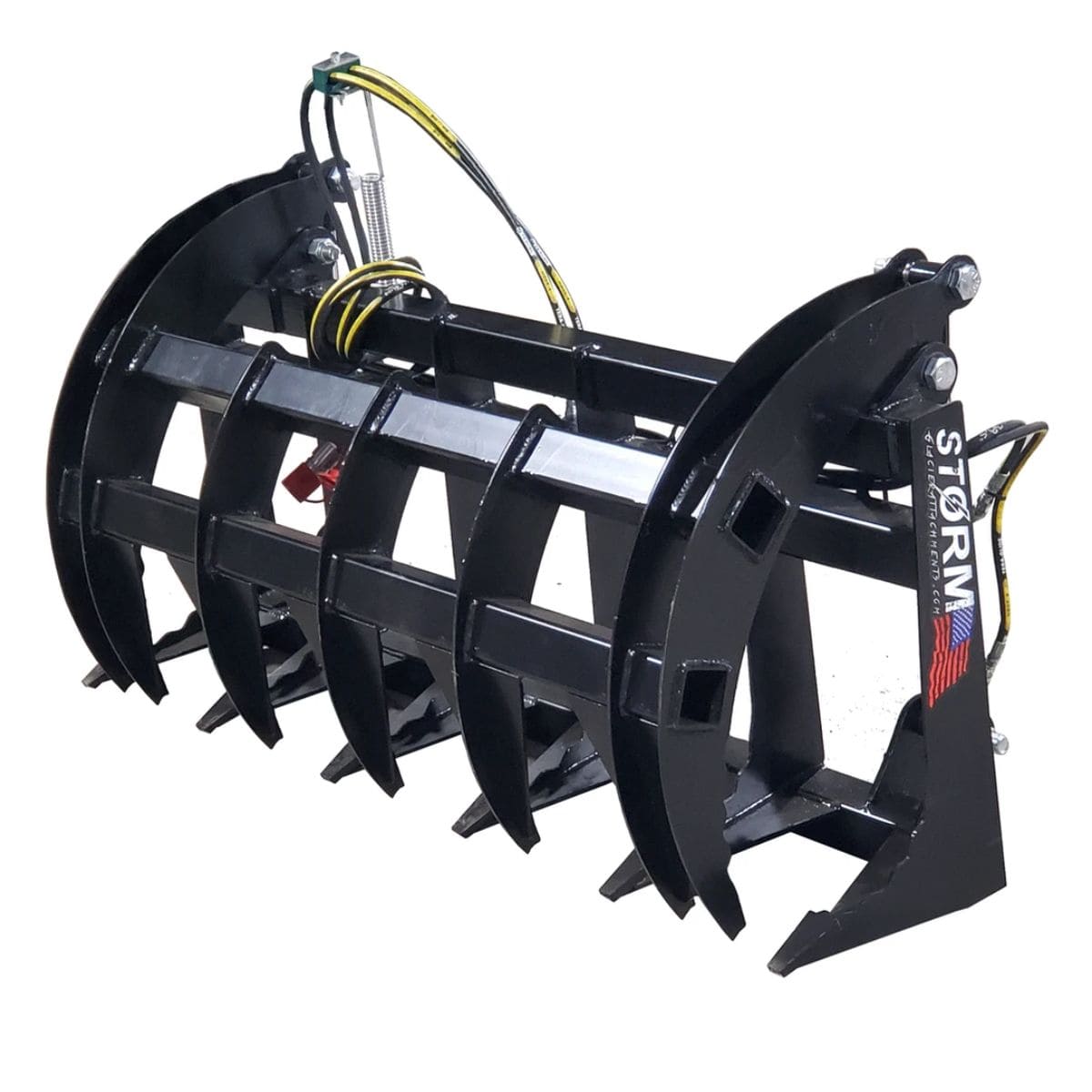

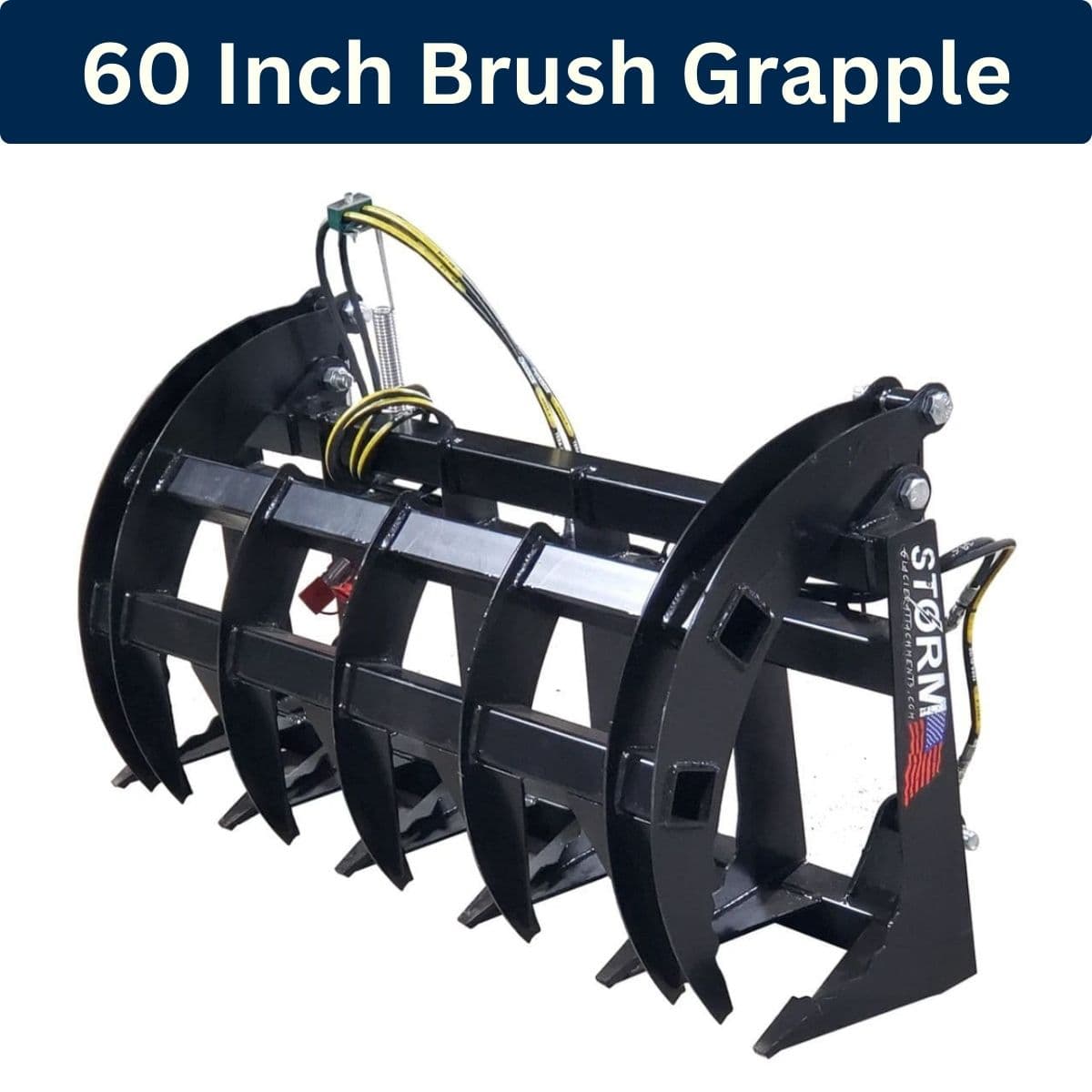

Three 60" Models for Different Machines
The 60" lineup includes a 50 HP single cylinder model, a 35 HP dual cylinder model, and a 50 HP dual cylinder model. This gives buyers a choice of construction and operating configurations instead of forcing every machine into the same attachment.

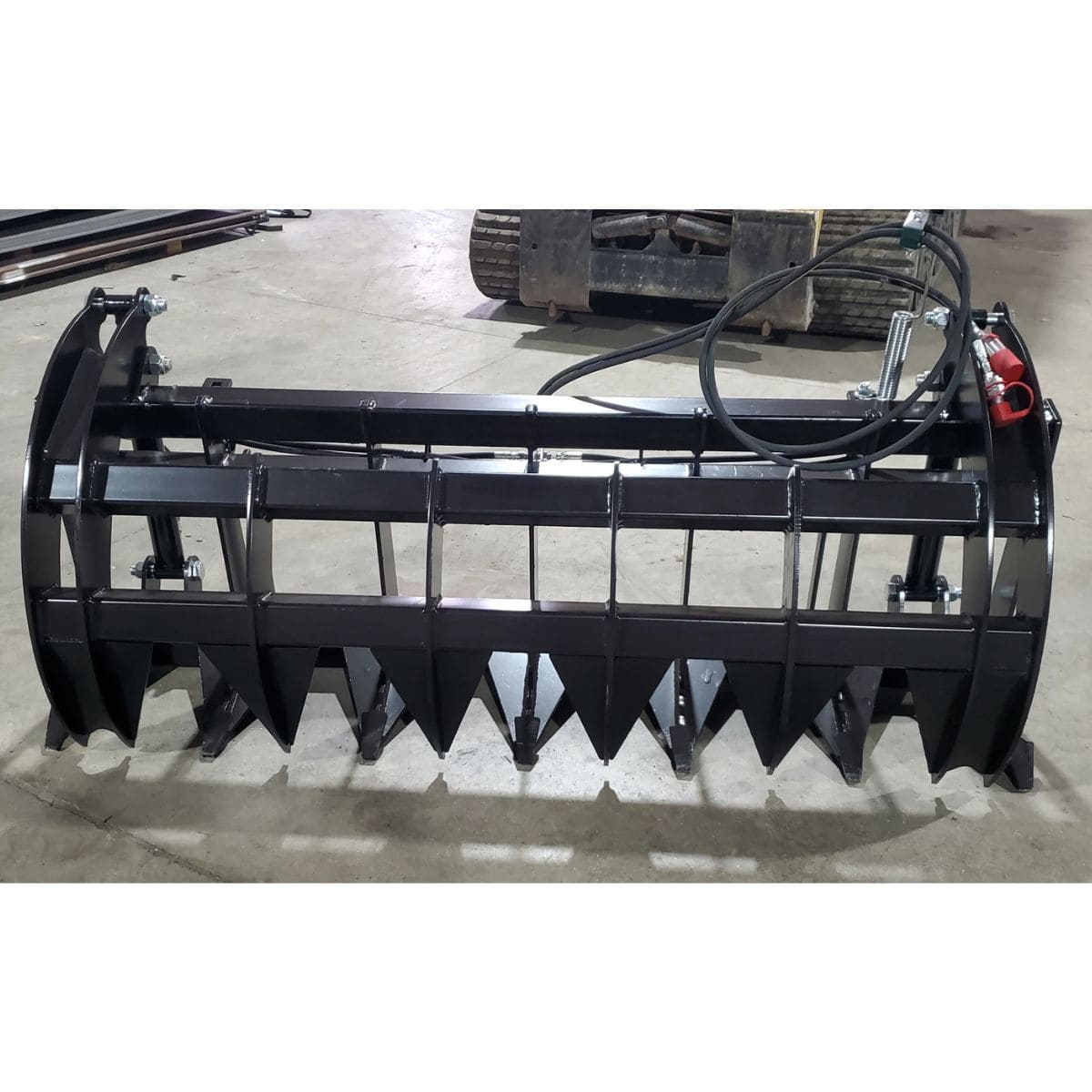

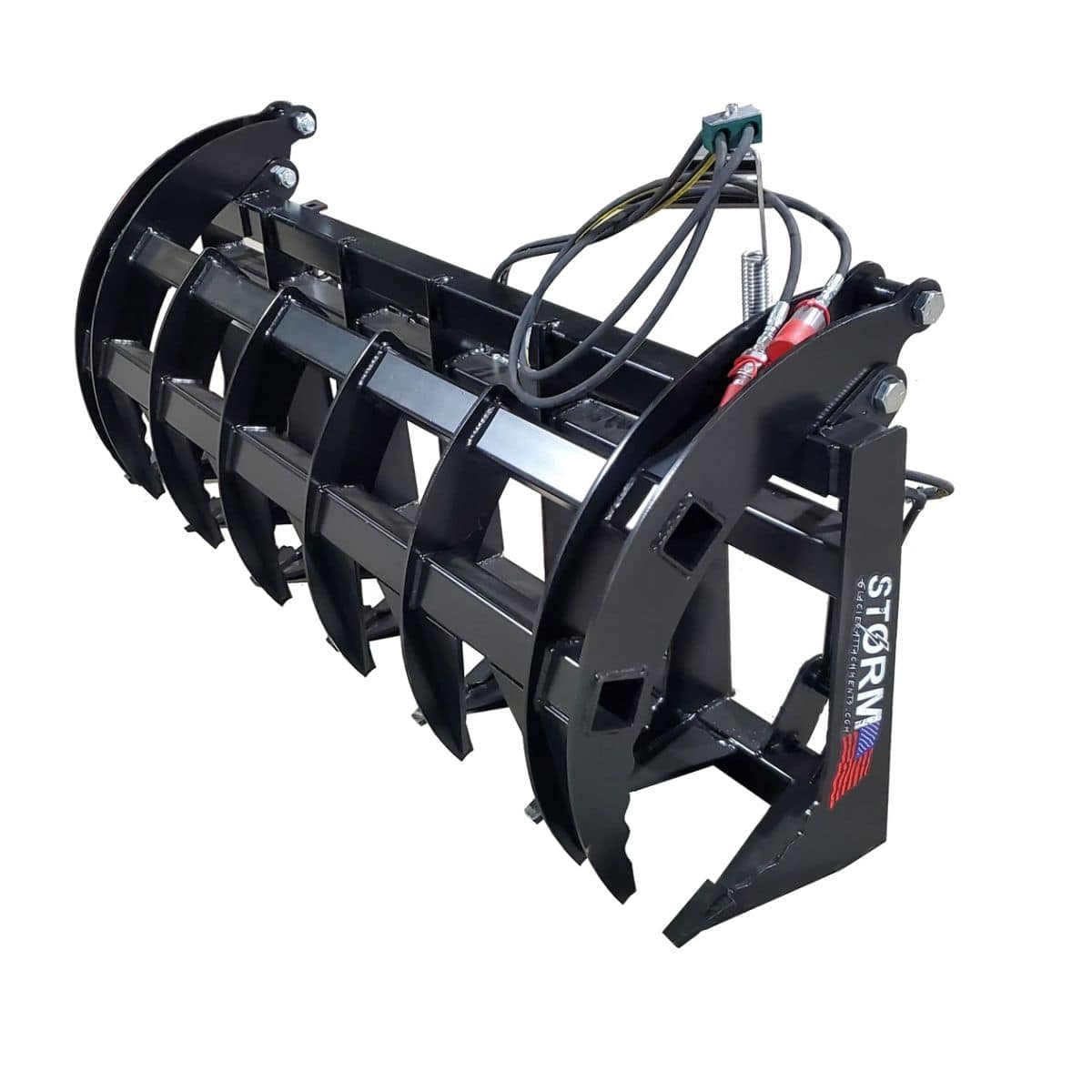

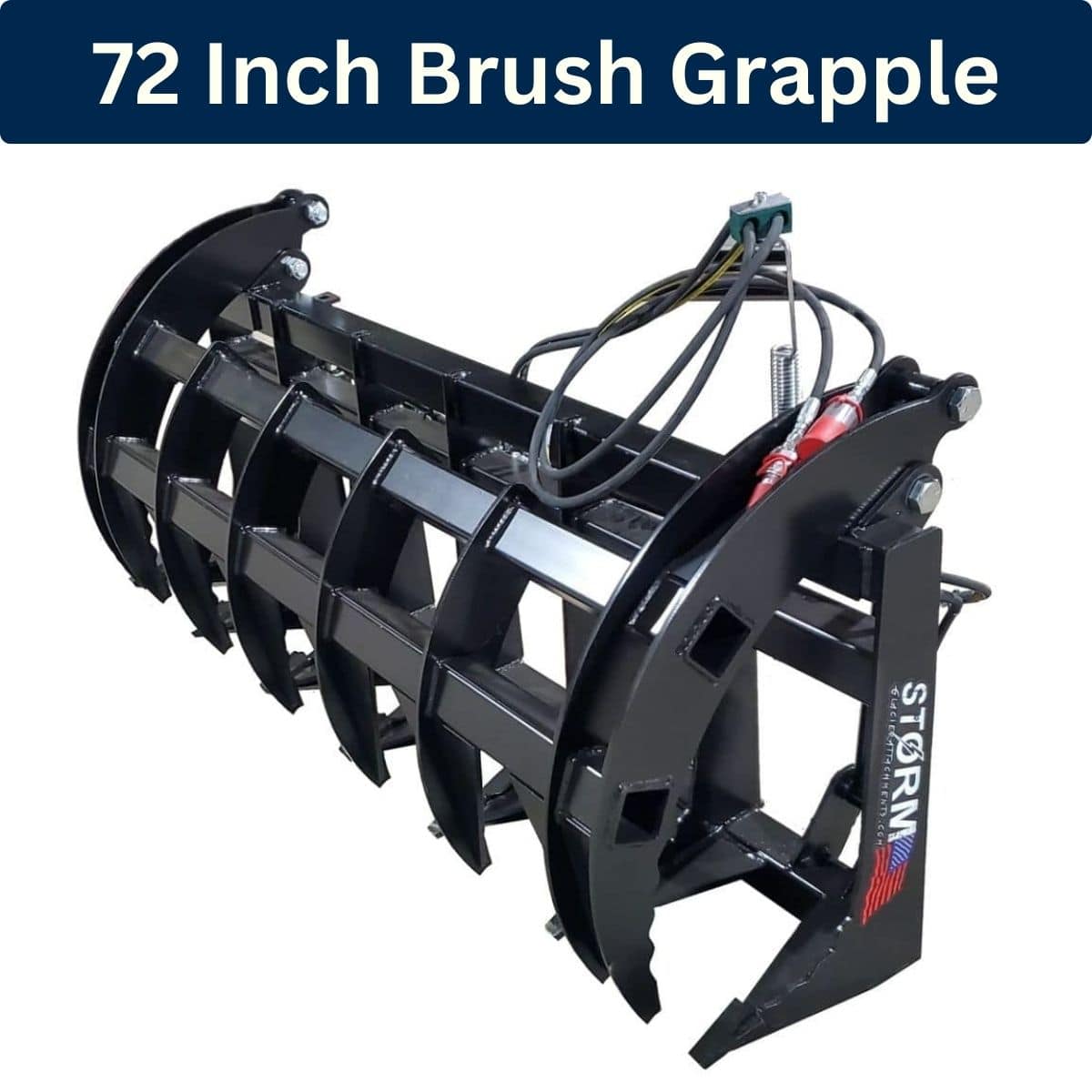

72" Heavy Duty Rake Grapple

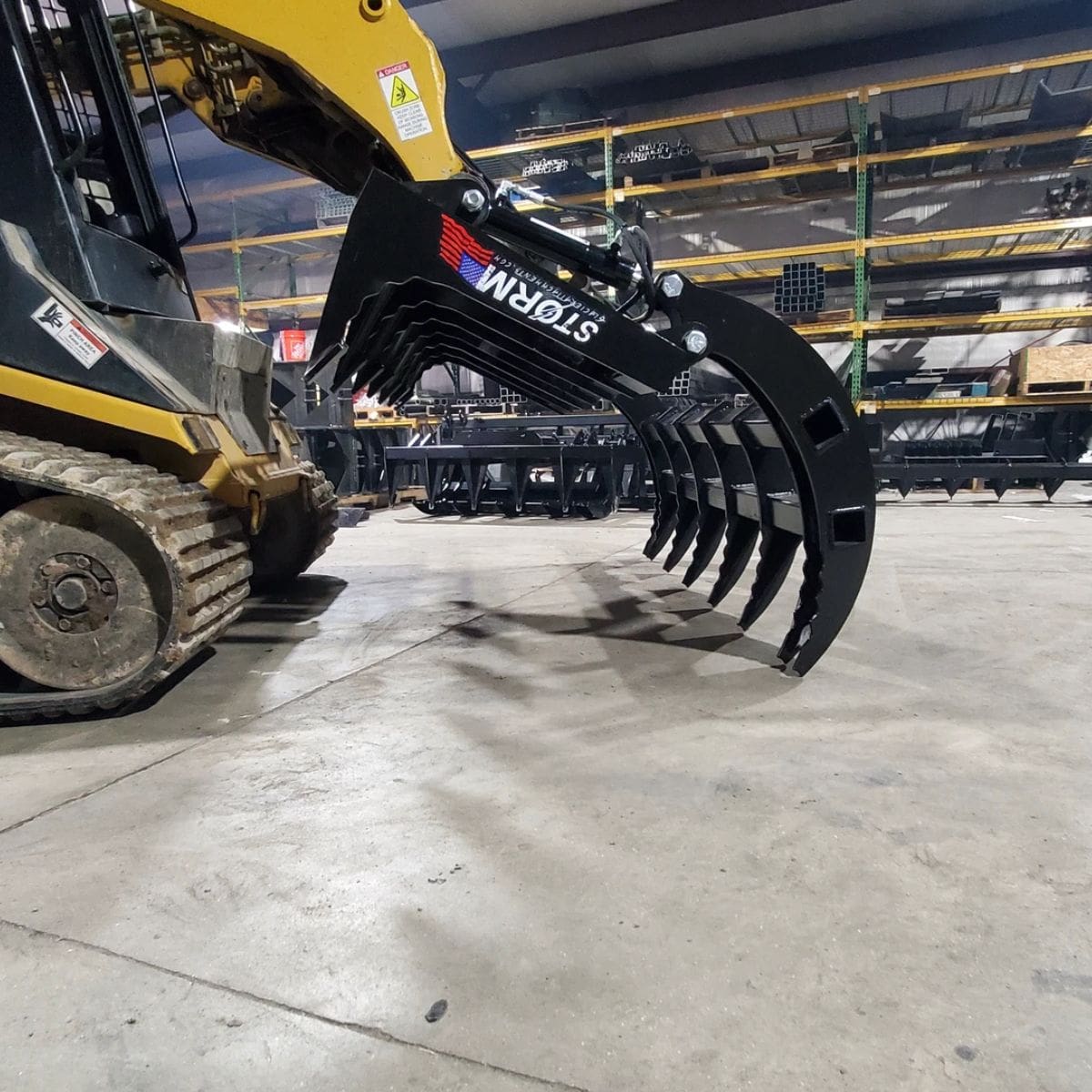

The 72" HD version features 3/8" tine and claw material, dual rear mounted cylinders, and a 48" fully open mouth. It's designed for larger loaders and more demanding brush handling applications, with a manufacturer recommendation of up to 75 HP.

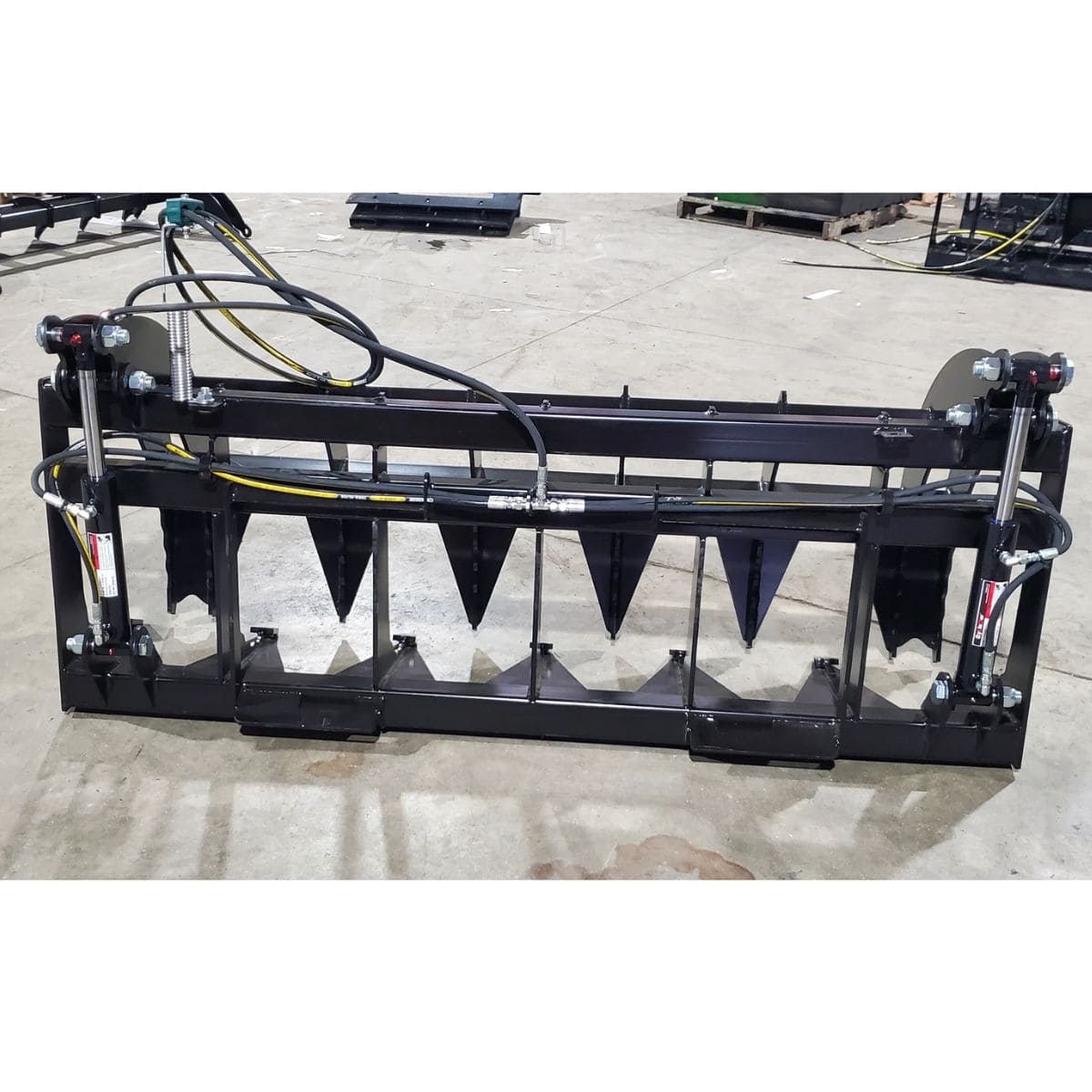

Hydraulic Component Protection
Storm uses welded hydraulic cylinders, protective steel covers, and heavy duty hydraulic hoses. The rear mounted cylinders on dual cylinder models help keep hydraulic components farther away from direct contact with brush and debris.
Greaseable Pivots and American Steel
Greaseable pivot points make routine lubrication straightforward, while high strength steel construction provides the structure needed for regular grapple work. Storm manufactures these attachments in Michigan.
| Specification | 60" Single Cylinder | 60" Dual Cylinder 35 HP | 60" Dual Cylinder 50 HP | 72" HD Dual Cylinder |
|---|---|---|---|---|
| Working Width | 60" | 60" | 60" | 72" |
| Hydraulic Cylinders | 1 | 2 | 2 | 2 |
| Cylinder Placement | Top Mounted | Rear Mounted | Rear Mounted | Rear Mounted |
| Maximum Recommended Machine HP | 50 HP | 35 HP | 50 HP | 75 HP |
| Tine and Claw Material | 1/4" Steel | 1/4" Steel | 1/4" Steel | 3/8" Steel |
| Fully Open Mouth | 36" | Confirm for Selected Model | Confirm for Selected Model | 48" |
| Pivot Maintenance | Greaseable | Greaseable | Greaseable | Greaseable |
| Hydraulic Hose Rating | 6,100 lb | 6,100 lb | 6,100 lb | 6,100 lb |
| Manufacturing Location | Michigan, USA | Michigan, USA | Michigan, USA | Michigan, USA |
| Model / Configuration | Connection Type | SKU | Weight |
|---|---|---|---|
| 60" | 1 Cylinder | 50 HP Max | SSQA | 0214RAKE60-1SS | 310 lb |
| 60" | 1 Cylinder | 50 HP Max | JDQA | 0214RAKE60-1JD | 310 lb |
| 60" | 2 Cylinders | 35 HP Max | SSQA | 0214RAKE35HP60-2SS | 290 lb |
| 60" | 2 Cylinders | 35 HP Max | JDQA | 0214RAKE3560-2JD | 290 lb |
| 60" | 2 Cylinders | 50 HP Max | SSQA | 0214RAKE50HP60-2SS | 375 lb |
| 60" | 2 Cylinders | 50 HP Max | JDQA | 0214RAKE50HP60-2JD | Not Published |
| 72" | 2 Cylinders | 75 HP Max | HD | SSQA | 0214RAKE72-2SS | 520 lb |
| 72" | 2 Cylinders | 75 HP Max | HD | JDQA | 0214RAKE72-2JD | 585 lb |
Weights shown are based on the current Storm dealer configuration records. The 60" single cylinder manufacturer website lists a different weight than the dealer system; the table follows the dealer's SKU specific data. The 60" 50 HP dual cylinder JDQA weight is not currently published and should be confirmed before shipment.
All models require compatible auxiliary hydraulics. Confirm loader lifting capacity, mounting compatibility, hydraulic connections, and coupler requirements before ordering. Maximum horsepower recommendations do not guarantee compatibility with every loader.
Storm 60" Rake Grapple | 2 Cylinders | 35 HP Max
Storm 60" Rake Grapple | 1 Cylinder | 50 HP Max
